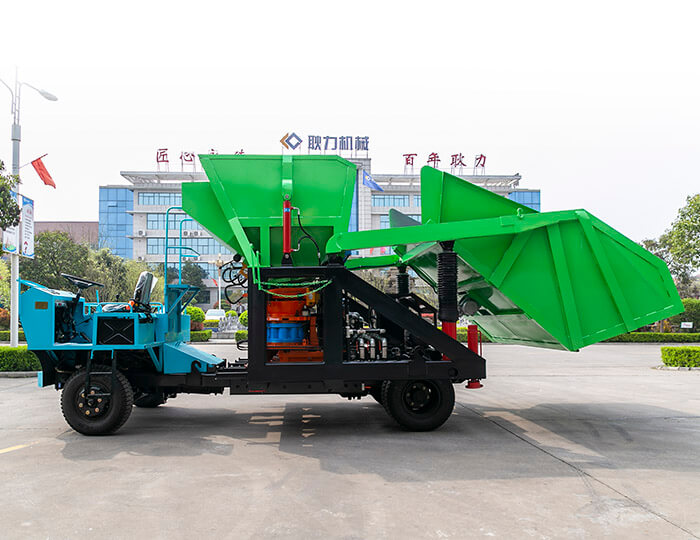

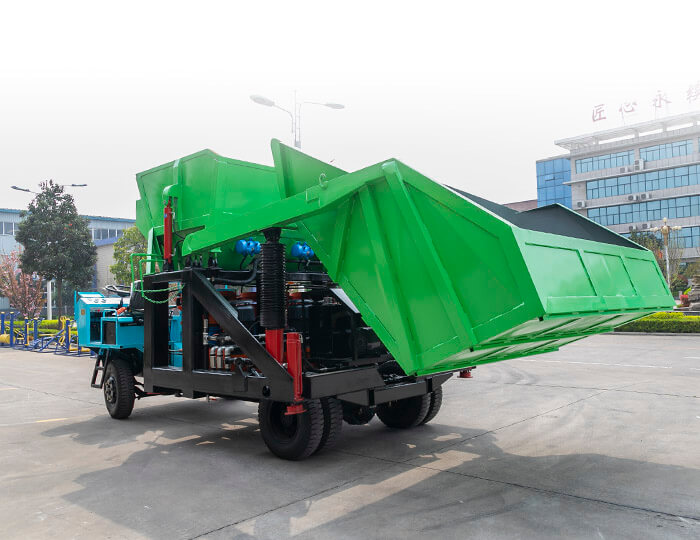

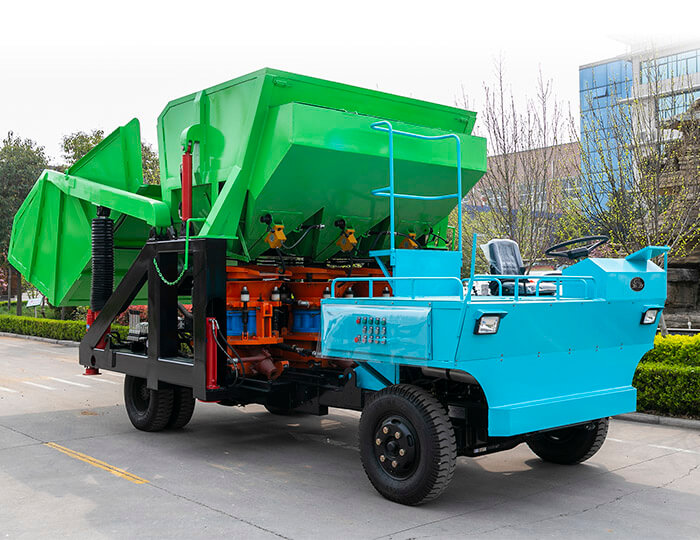

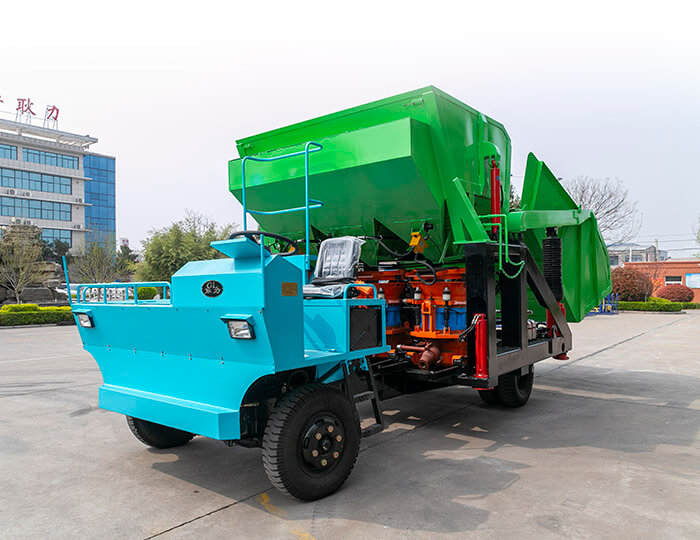

GLZ-21 Self-feeding Concrete Shotcrete Machine

Description

It uses a 4-cylinder 58.8KW diesel engine with strong power, and is equipped with three 7m³ shotcrete machines to work at the same time, with high work efficiency.

Features

• Continuous feeding, high working efficiency
• Feeding hopper works together with lifting hopper to ensure continuous feeding, and spraying capacity up to 21m³/h, efficiency is greatly improved.

• Dry shotcrete machine slide easily on the rail and work efficient
• The dry-mix shotcrete machine can slide easily in the track, and the feeding hopper is lifted by hydraulic control, lowering the labor intensity of maintainers.

• Four hydraulic outriggers
• The four hydraulic outriggers make the machine more stable, firmer and safer for construction site.

• The lifting hopper can automatically stop
• The Oil cylinder stops working when the hopper has reached specified height, which extend service life of cylinder, reduces oil consumption and saves cost.

• The feeding hopper can be opened and closed easily
• The feeding hopper can be opened and closed easily, the feeding amount can be automatically adjusted according to the working capacity of the dry shotcrete machine, eliminate manual adjustment.

• Accelerator adopts automatic device
• The design of accelerator automatic adding device is new and reasonable, to realize continuous and uniform feeding, stepless speed regulation, reduce labor cost.

• The braking mode is air brake
• The braking mode is air brake, make driving and parking easier and safer.

• Easy and safe feeding
• A special work station is reserved for feeding accelerator, making the operation easier and safer.

• Easy operation
• ON/OFF switches have been provided at the two sides of the machine for easier operation.

Parameters

Project case
