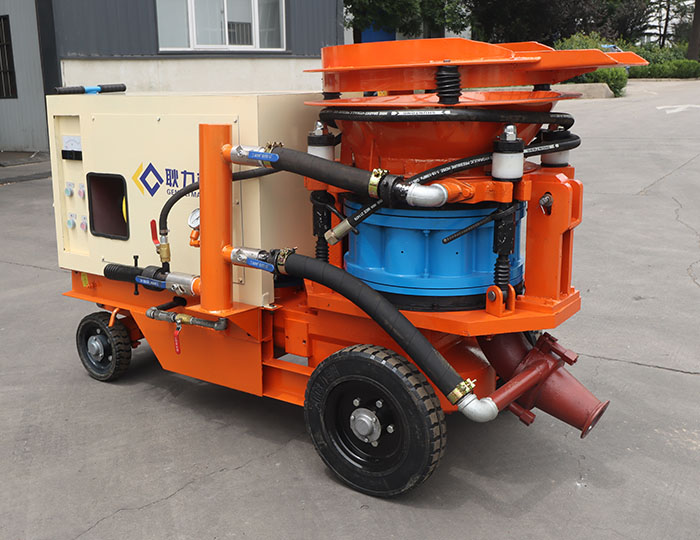

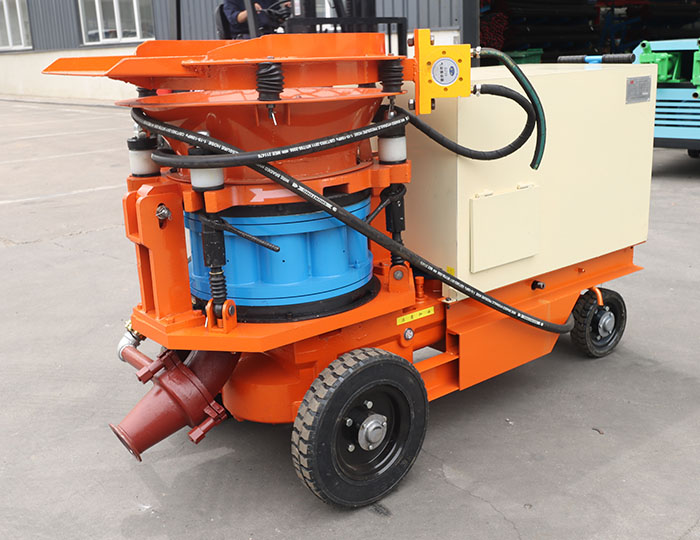

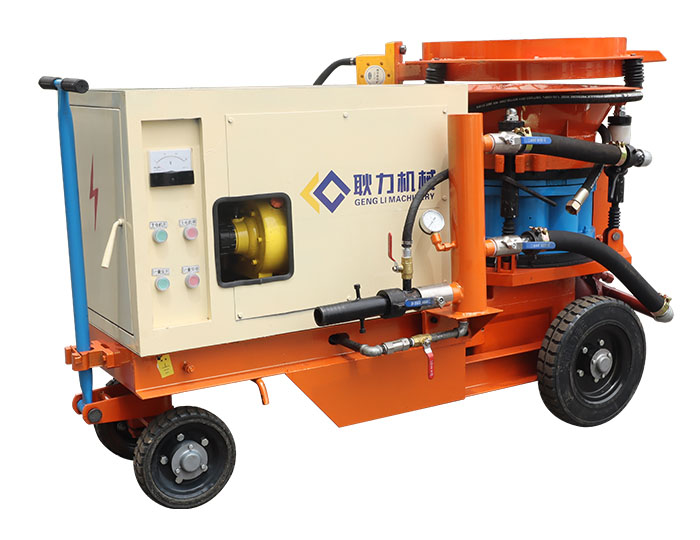

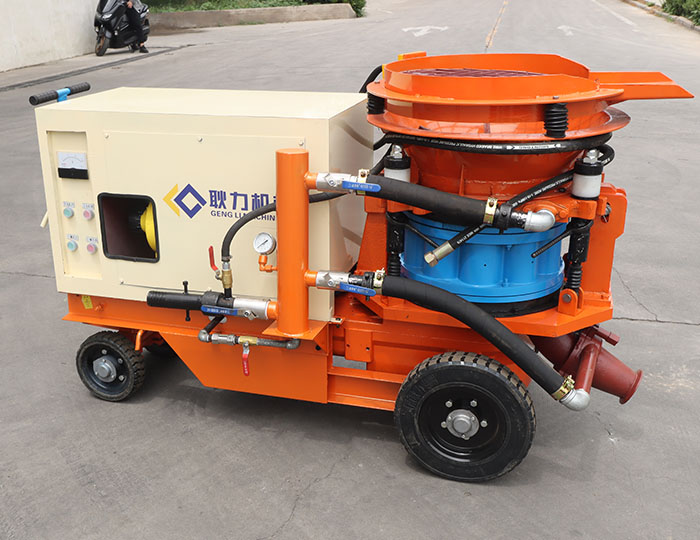

Dry/Wet-mix Shotcrete Machine GSP-D

Production capacity：7m³ /h
Inner diameter of delivery pipe：Φ57 mm
Maximum delivery distance：Horizontal：30m Vertical：20m

Get a quote Send email

Description

Dry/Wet-mix Shotcrete Machine GSP-D is mainly used for spraying concrete construction operations such as tunnels, underground projects, slope protection, etc. This shotcrete machine is a dry and wet shotcrete machine, which makes up for the shortcomings of only dry spraying or only wet spraying, and can meet the spraying needs of more customers.

Features

Attractive appearance, easy operation and maintenance
Reasonable and compact structure, attractive appearance, easy operation and maintenance, long service life.

Parameters

Item	Parameters
Production Capacity	7m³/h
Working Pressure	0.4-0.6Mpa
Maximum Aggregate Diameter	20mm
Total Weight	860kg
Overall Dimension	18507201110mm
Maximum Conveying Distance	30/20m(Horizontal/Vertical)
Maximum Air Consumption	12m3/min
Main Motor Power	7.5kw
Voltage Classes	380V
Feeding Capability for Liquid Accelerating Agent	0-240L/h
Inner Diameter of Conveying Pipe	￠57mm
Dust Concentration	≤10mg/m³
Feeding Height	1.1m
