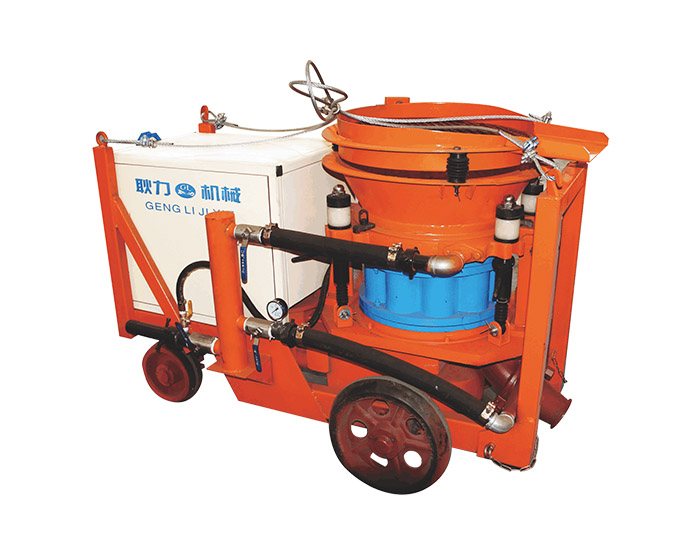

PZ-7F Dry shotcrete machine

Production capacity：7m³ /h
Working pressure：0.4-0.6MPa
Inner diameter of delivery pipe：Φ57 mm
Maximum aggregate diameter：20mm

Get a quote Send email

Description

The PZ-7F Dry shotcrete machine is equipped with a lifting hook and an anti-collision frame, which makes it more convenient for lifting and transportation, and can effectively protect the material hopper and the electric control box from damage during the lifting process.

Features

Added lifting hook and anti-collision frame
Added lifting hook and anti-collision frame, convenient for lifting and transportation, effectively protect the material hopper and the electric control box from damage during the lifting process.

Reliable performance, easy operation
Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life, easy to lift.

Parameters

Production capacity	7m³/h
Working pressure	0.4-0.6Mpa
Inner diameter of delivery pipe	Φ57mm
Maximum delivery distance	Horizontal 200m，Vertical 20m
maximum aggregate diameter	20mm
Water cement ratio	0.4-0.45
Maximum air consumption	12m³/min
Feeding height	1100mm
Motor power	7.5KW
Voltage grade	380V
Dimension	17008501150mm
Machine weight	850kg
