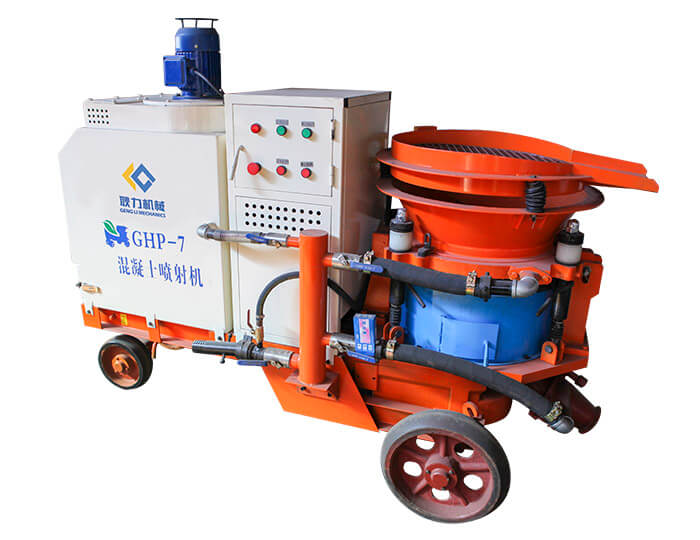

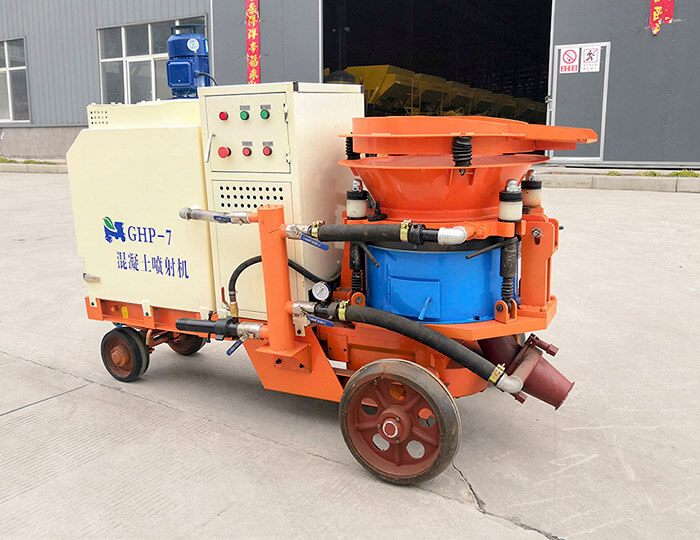

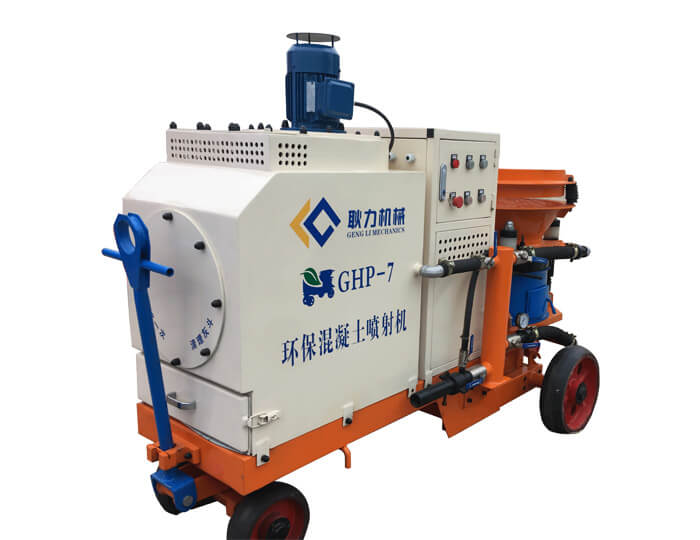

GHP-5D/7D Environmental-friendly Dry Mix Concrete Gunite Machine

Machine weight：900kg/950kg
Production capacity：5-5.5m³/h / 7m³/h
Inner diameter of delivery pipe：51mm / 57mm
Dust removal rate：99.9%

Get a quote Send email

Description

GHP-5D/7D is dry-mix environmentally concrete shotcrete machine developed by Gengli independently. Having same working capability with PZ-5D/7D, which is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works etc.

Features

Reliable performance, easy operation
Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.

Almost zero dust emission
Almost zero dust emission, and complying with social theme “environmental protection”

Dust-removal rate up to 99.9%
Adopt cartridge type dust collector, dust-removal rate up to 99.9%, low dust removal resistance, simple structure and easy maintenance.

Parameters

Model	GHP-5D	GHP-7D
Machine weight	900kg	950kg
Production capacity	5-5.5m³/h	7m³/h
Working pressure	0.4-0.6Mpa	0.4-0.6Mpa
Inner diameter of delivery pipe	Φ51mm	Φ51mm
Maximum air consumption	8m³/min	12³/min
Motor power	6.6KW	8.6KW
Dust removal rate	99.99%	99.99%
Dust removal air volume	600-800m³/h	600-800m³/h
