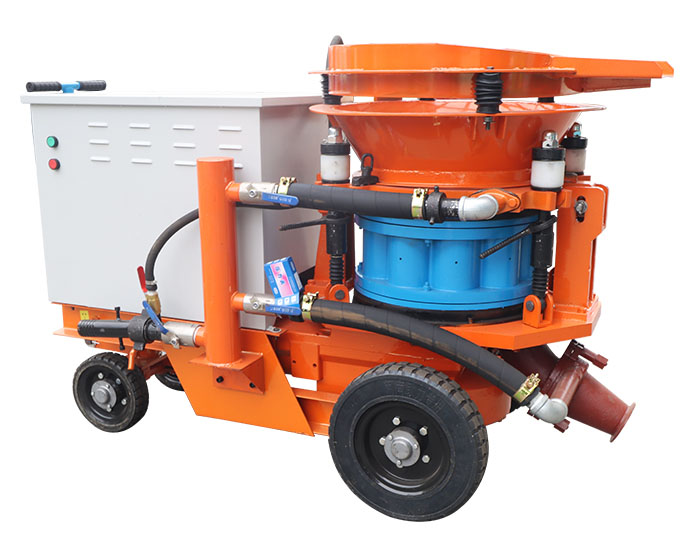

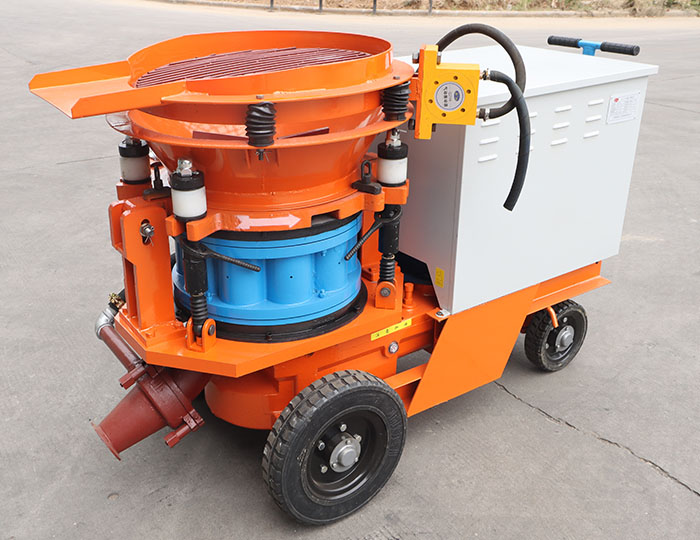

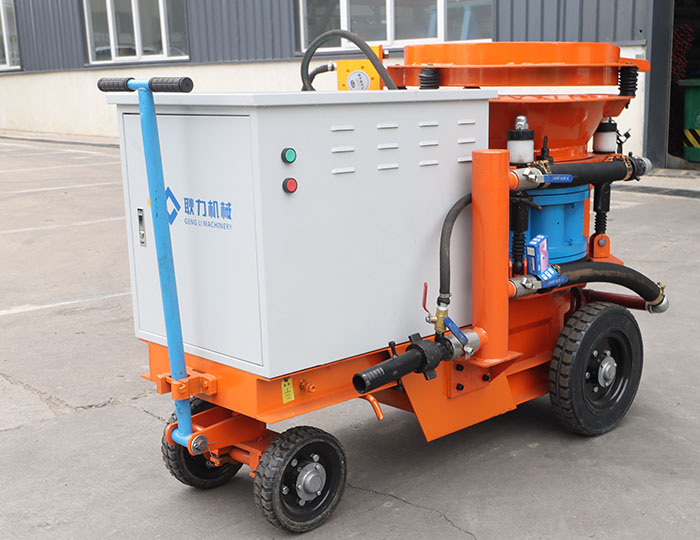

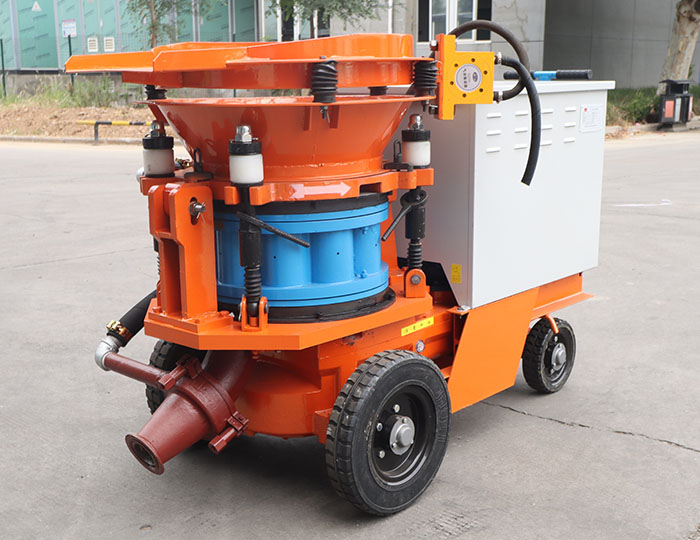

PZ-7D Dry Mix Shotcrete Machine

Production capacity：7m³ /h
Working pressure：0.4-0.6Mpa
Maximum aggregate diameter：20 mm
Total weight：800kg

Get a quote Send email

Description

PZ-7D Dry Mix Shotcrete Machine is a concrete shotcrete equipment with more capacity, higher efficiency and more reasonable structure developed by our company independently, which is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works etc.

Features

Reliable performance, easy operation
Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.

Parameters

Production capacity	7m³/h
Working pressure	0.4-0.6Mpa
Inner diameter of delivery pipe	Φ57mm
Maximum delivery distance	Horizontal 200m，Vertical 20m
maximum aggregate diameter	20mm
Water cement ratio	0.4-0.45
Maximum air consumption	12m³/min
Feeding height	1100mm
Motor power	7.5KW
Voltage grade	380V
Dimension	16608001100mm
Machine weight	800kg
