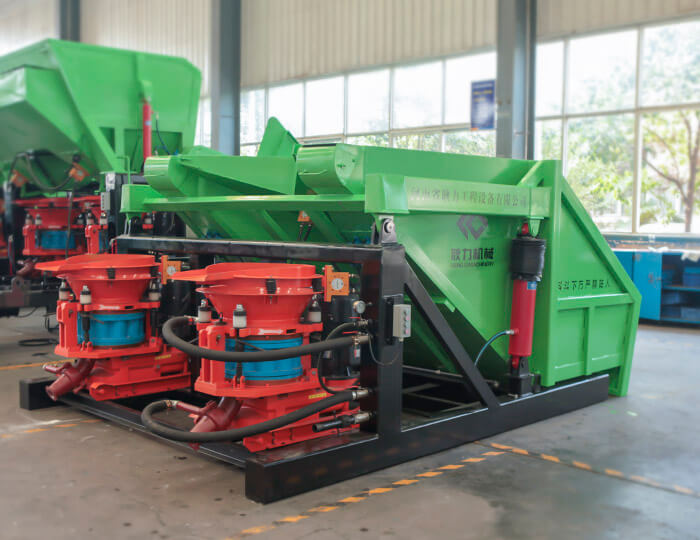

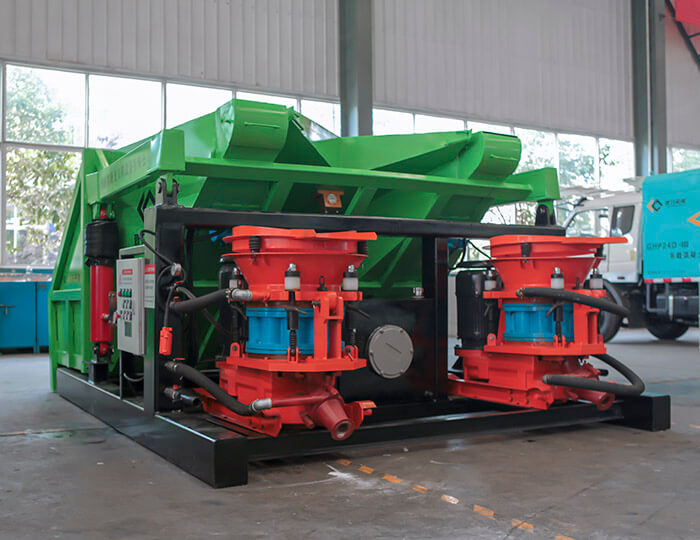

GLZ-14J Self-feeding Shotcrete Machine

System working pressure：14MPa
System flow：55L/min
Hydraulic oil tank volume：100L
Concrete delivery capacity：14m³/h

Get a quote Send email

Description

The GLZ-14J Self-feeding Shotcrete Machine is one of our company’s Self-feeding Shotcrete Machines. This machine can provide two shotcrete machines at the same time, and is widely used in large-span tunnel construction.

Features

Strong applicability
It can provide two shotcrete machines at the same time, and is widely used in large-span tunnel construction.

Simple and compact structure, high efficiency
Simple and compact structure, high efficiency, dedicated to tunnel feeding shotcrete.

Replace the traditional manual loading construction mode, saving labor
Replace the traditional manual loading construction mode, saving labor.

Easy operation and maintenance
The operation of the integrated feeder is more convenient and the construction cost is greatly reduced.

Parameters

Hydraulic system	System working pressure	14Mpa
	System flow	55L/min
	Hydraulic oil tank volume	100L
Machine parameters	Dimension	L4890W2800H1850mm
	Total weight	3000kg
	Main motor power	15KW
	Maximum climbing degree of hopper	4200mm
	Rated volume of lifting hopper	6m³
	Rated volume of accelerator	250kg
