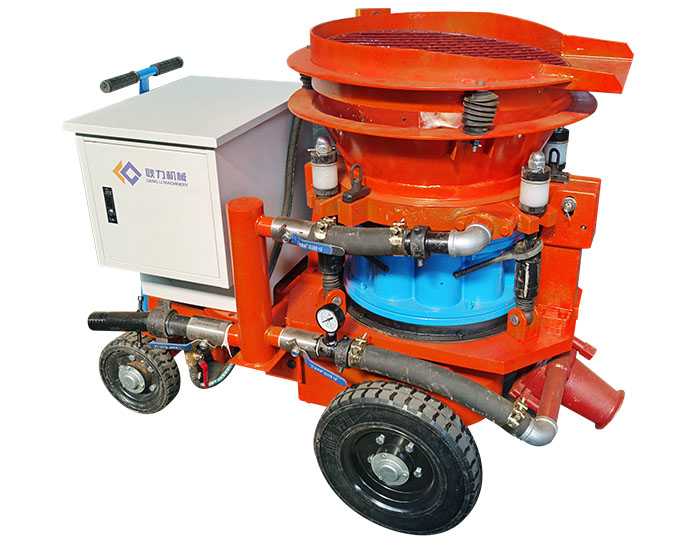

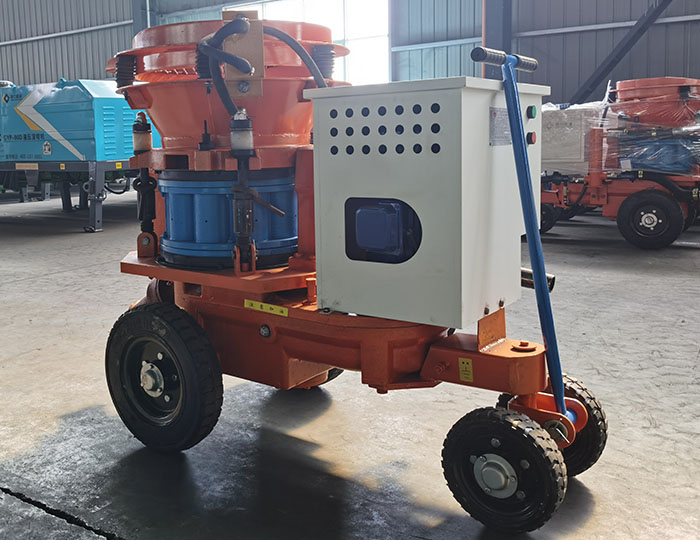

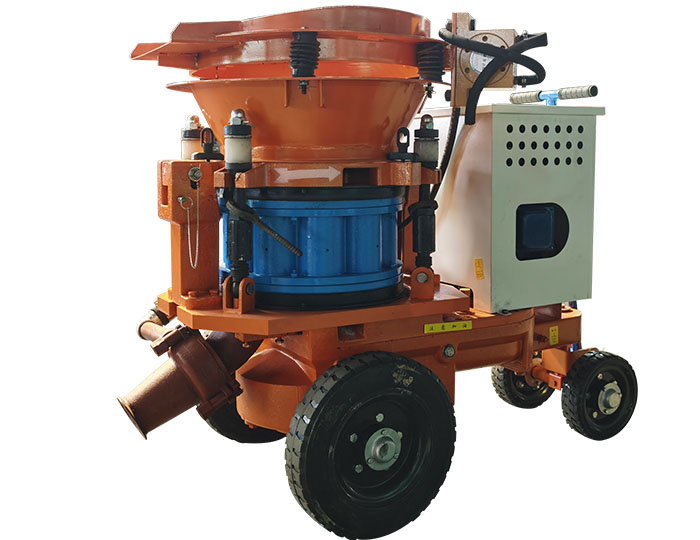

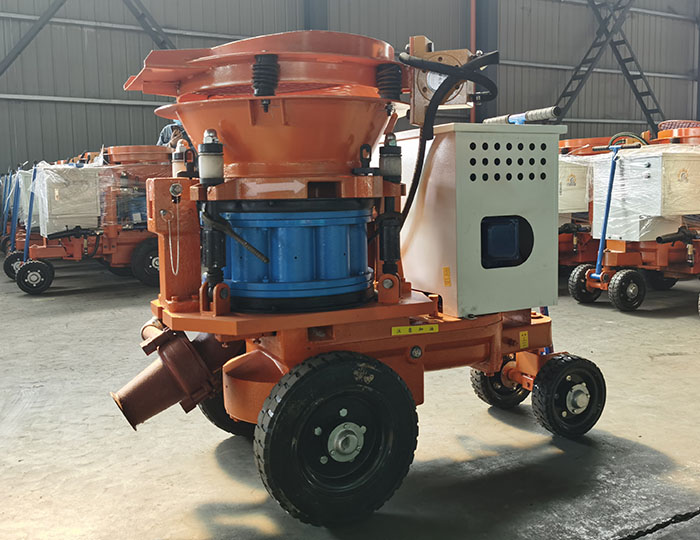

PZ-5D Dry Mix Concrete Shotcrete Machine

Production capacity：5m³ /h
Working pressure：0.4-0.6MPa
Inner diameter of delivery pipe：Φ51 mm
Maximum delivery distance：Horizontal：200m Vertical：20m

Get a quote Send email

Description

Concrete Shotcrete Machine PZ-5D is the advanced type based on PZ-5B, and it features strong vibration when discharging and fast discharging, which is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works etc.

Features

Reliable performance, easy operation
Advanced technology, reasonable structure, stable performance, easy operation and maintenance, long service life.

Parameters

Production capacity	5m³/h
Working pressure	0.4-0.6Mpa
Inner diameter of delivery pipe	Φ51mm
Maximum delivery distance	Horizontal 200m，Vertical 20m
maximum aggregate diameter	20mm
Water cement ratio	0.4-0.45
Maximum air consumption	8m³/min
Motor model	Y132M2-6
Feeding height	1100mm
Motor power	5.5KW
Voltage grade	380V
Dimension	14507101100mm
Machine weight	650kg
