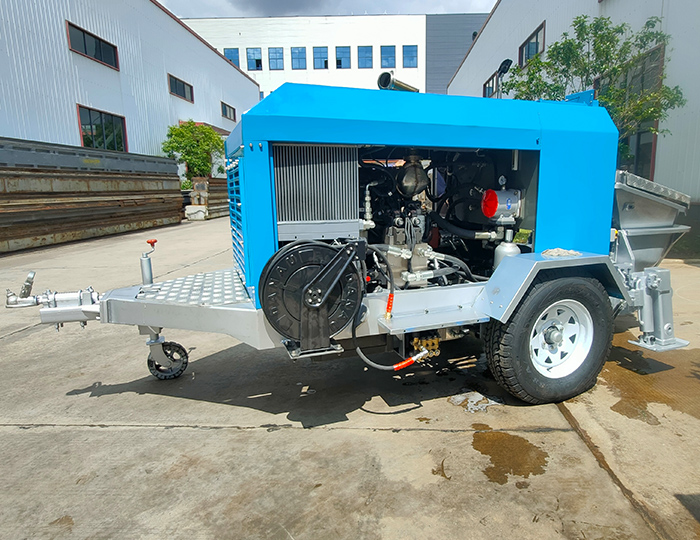

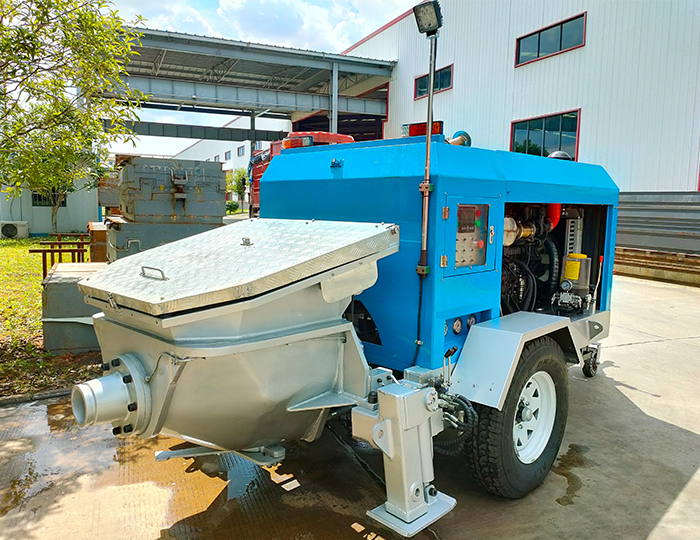

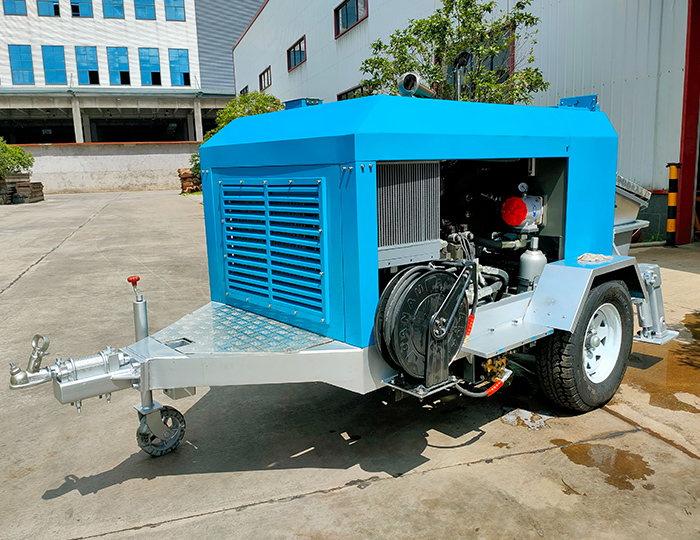

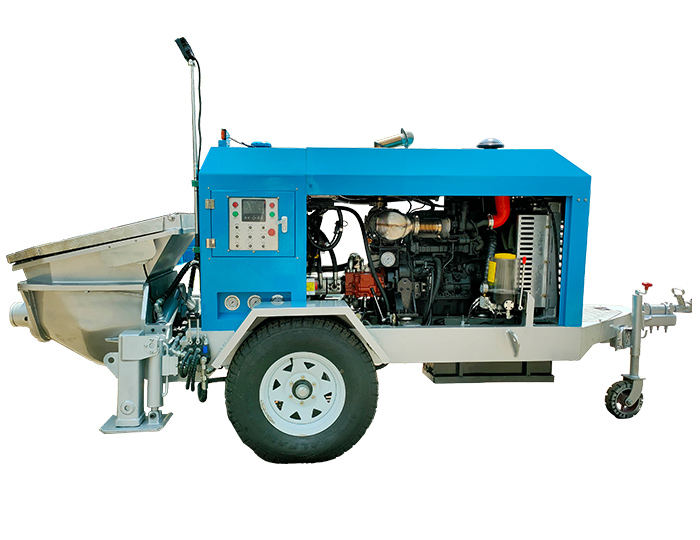

P30 Concrete shotcrete and grouting integrated pump

  • Theoretical delivery: 40m³ /h

  • Outlet pressure of concrete: 9bar

  • Hydraulic system pressure: 260bar

  • Concrete maximum conveying distance: 300m horizontal / 100m vertical


Get a quote Send email

Description

P30D is a kind of mechanical equipment that can be both shotcrete and grouting. The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.

Features

  • Stable
  • The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.
  • Wearable
  • High-manganese steel casting integrated sprinkler, smoother, more wear-resistant, shotcrete pulsation is small, and continuity is good.
  • PLC Control
  • The electrical appliances adopt PLC centralized control, which is reliable in work, long in life, and easy to program and operate.
  • Good continuity
  • The shotcrete has small pulsation and good continuity. The addition amount of accelerator is steplessly adjustable.

Parameters

ModelP30D
Diesel modelDeutz Engine(V4)
Diesel Power50KW(2200r/min)
theoretical   delivery40m³/h
Outlet   pressure of concrete9bar
hydraulic   system pressure260 bar
Concrete   maximum conveying distance300m horizontal /   100m vertical
Specification   of delivery cylinder160mm
Specification   of main oil cylinder90-55-100mm
Maximum   aggregate diameter≤25mm
Traveling   SystemTow ≤80Km/h
Machine   quality3000kg
Dimension(L×W×H)4600*1780*1720
