Philippines Atimonan Project
Dimension(L×W×H): 8800×2000×2450（±50）mm
Max.traveling speed: 22km/h
Geometrical capacity: 5.5m³
Chassis: Four-wheel driving/Articulated
Description

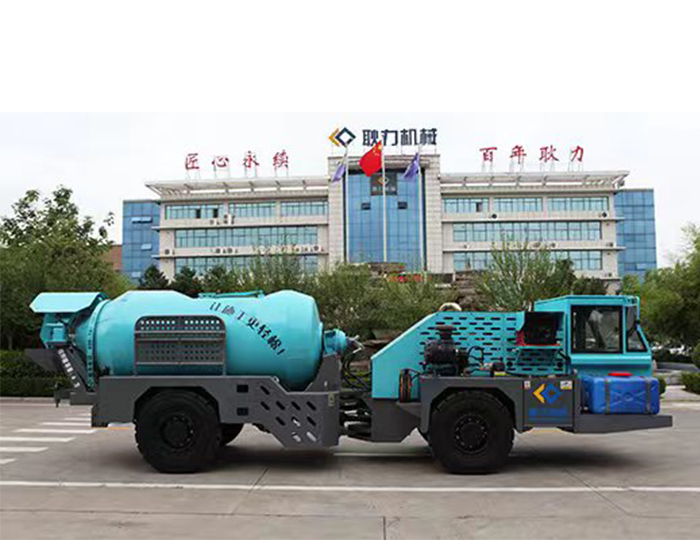

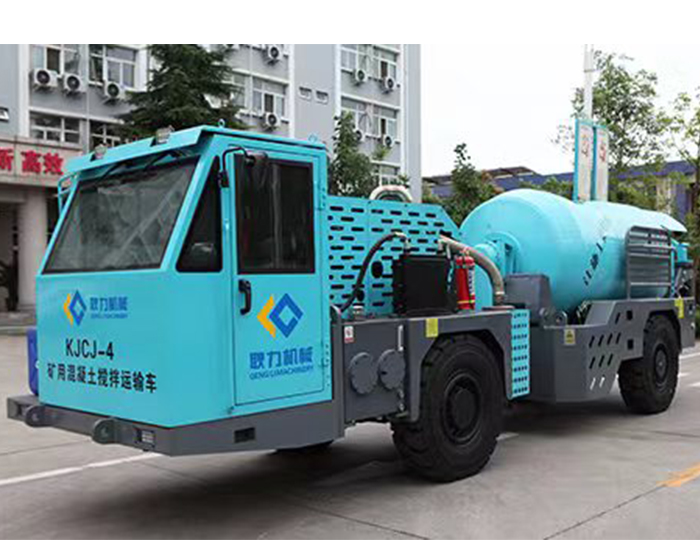

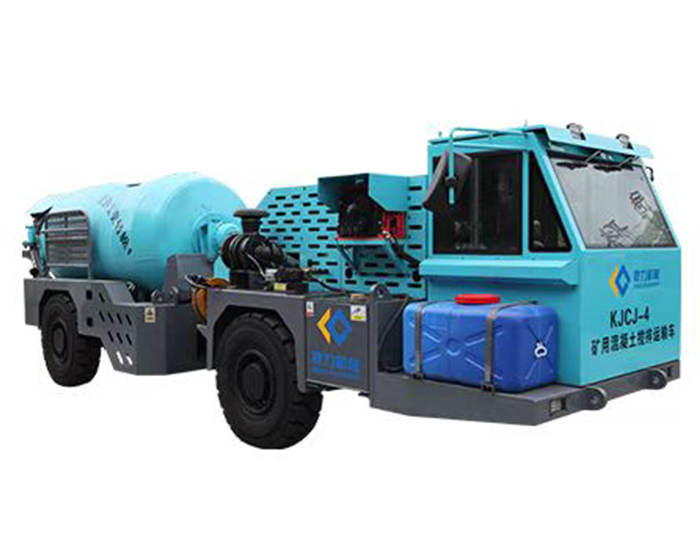

KJCJ-4 Mining concrete mixer truck is a
kind of concrete transportation equipment independently developed by our
company in order to broaden the product structure series. The overall
performance is stable, the whole machine is small in size, flexible in
rotation, convenient in construction and transfer, high in transportation
efficiency, and low in construction cost.
Features
Parameters
| Item No | Basic performance | Unit | Parameters |
| 1 | Dimension(L×W×H) | mm | 8800×2000×2450（±50） |
| 2 | Total weight | kg | 14000 |
| 3 | Articulated angle | （°） | ±43 |
| 4 | Turning radius | mm | 4150/6200 |
| 5 | Min.ground clearance | mm | 320 |
| 6 | Approach angle/Departure angle | （°） | 15/20 |
| 7 | Max.climbing degree | （°） | 15 |
| 8 | Wheelbase×Wheel tread | mm | 3870×1685 |
| 9 | Engine power | kw | 154/2200RPM |
| 10 | Diesel fuel tank | L | 180 |
| 11 | Chassis | Four-wheel driving/Articulated | |
| 12 | Max.traveling speed | km/h | 22 |
| 13 | Braking distance | m | 11 |
| 14 | Brake | Service brake /Auauxiliary brake/Parking brake | |
| 15 | Geometrical capacity | m³ | 5.5 |
| 16 | Mixing volume | m³ | 0-4 |
| 17 | Tank rotating speed-Travelling | r/min | 1~3 |
| 18 | Tank rotating speed-Unloading | r/min | 0-18 |
| 19 | Unloading speed | m³/min | ≥0.65 |
| 20 | Inclination angle | （°） | 0-10.5 |
| 21 | Discharging height | mm | 920-1800 |
| 22 | Feeding speed | m³/min | ≥2.7 |
| 23 | Feeding height | mm | 2350 |
| 24 | Feeding opening | mm | φ560 |
| 25 | Hydraulic oil volume | L | 170 |
