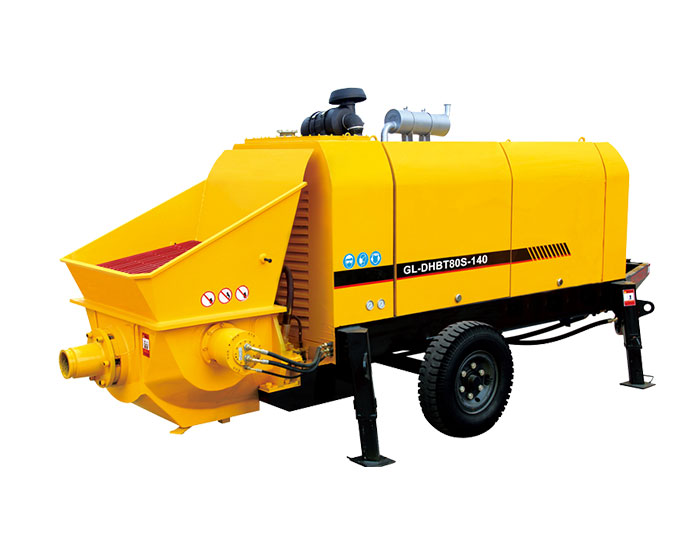

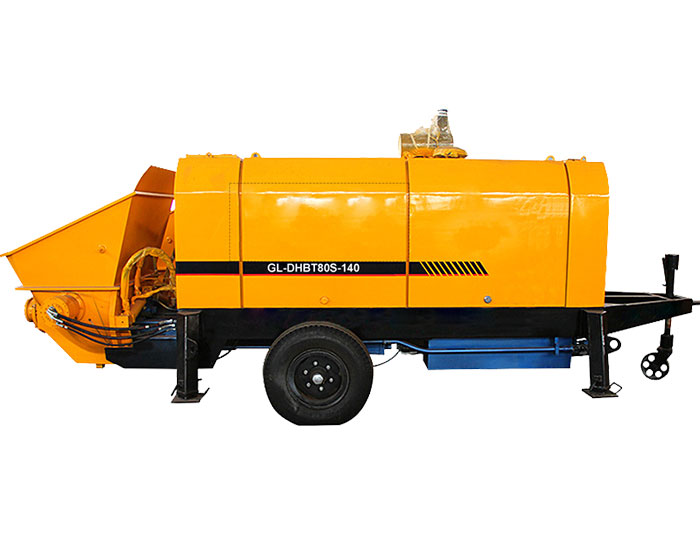

GL-DHBT80S-140 Diesel Concrete Pump

Get a quote Send email

Description

Features

Extend component life
overall hydraulic commutation system: the alternative commutation actions between pumping and S tube distribution doesn't involve electric signals. Little impact and noise occurs during the commutation, so the service lives of the hydraulic pump and valves are evidently lengthened.

Improve equipment reliability
Overall hydraulic system saves the intermediate process of the electric signals. In this way, the reliability of the whole equipment is greatly increased.

Reduce the failure rate
Full hydraulic commutation system adopts centralized valve plate, the hydraulic valves of main system are centralized in one valve plate. The number of cross-connected pipelines is reduced, the system gets more compact, at the same time the oil leaking possibility is decreased.

Reduce maintenance costs
Full hydraulic commutation system, deleting four parts extremely damageable in the electronic commutation system, reduces equipment maintenance costs.

Parameters

Item	Unit	GL-DHBT50S-85	GL-DHBT60S-129	GL-DHBT80S-140	GL-DHBT80S-176	GL-DHBT80S-195
Theoretical delivery volume	m³/h	50	60	80	80	80
Theoretical delivery pressure	Mpa	13	13	13	16	18
Max. delivery frequency	/min	20	22	22	22	23
Theoretical delivery height	m	150	180	180	240	240
Theoretical delivery distance	m	400	500	500	600	600
Type of distribution valve		S Valve
Specification of delivery cylinder	mm	Φ200×1200	Φ200×1650	Φ200×1650	Ф200×1800	Ф200×1800
Specification of main oil cylinder	mm	Φ125/Φ80×1200	Φ125/Φ80×1650	Φ125/Φ80×1650	Ф140/90×1800	Ф150/90×1800
Oil tank capacity	L	300	500	500	420	420
Hopper capacity	L	600	600	600	600	600
Feeding height	mm	1400	1400	1400	1400	1400
Outlet diameters	mm	∅185	∅185	∅185	∅185	∅185
Delivery pipe inner diameter	mm	∅125	∅125	∅125	∅125	∅125
Diesel Power	Kw	85	129	140	176	195
Rated rotate speed	r/min	2200	2300	2300	2300	2300
Idling speed	r/min	800	800	800	800	800
Voltage of battery cell	V	24V	24V	24V	24V	24V
Fuel tank capacity	L	150	150	150	150	150
Hydraulic oil circuit type		Open circuit
Max. oil pressure of main system	MPa	25	32	32	32	32
Max. oil pressure of mixing system	MPa	14	14	14	14	14
Max. mixing rotate speed	r/min	24	24	24	24	24
Concrete slump	mm	80～200	80～200	80～200	80～200	80～200
Allowable max dia. of aggregate	mm	Pebble 50，crushed stone 40
Dimension（length×width×height）	mm	5270×1860×2580	6600×1930×2190	6600×1930×2190	6600×1930×2190	6600×1930×2190
Weight	Kg	4000	6300	6800	7000	7500
Pull speed	Km/h	≤8	≤8	≤8	≤8	≤8
