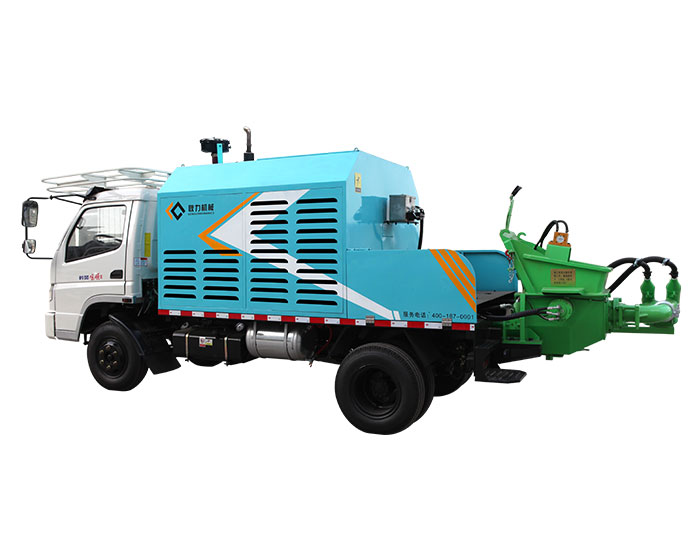

GL-CHB100D Truck Mounted Concrete Pump

Get a quote Send email

Description

Features

Lubricating system
lubricating system uses automatic multi-point lubricating technology, one-to-one lubrication, and with better performance and prolonged the lifetime of easy wear parts.

Electrical parts
Main electric elements are from Schneider and LG, the reliability of the electric-control system is highly improved.

Automatic protection technology
Diesel engine startup protection, electric system failure and short circuit protection, auto protection of diesel engine on too high temperature water and low oil pressure, speed limit protection of diesel engine, and quick-stop button.

Parameters

ITEM			UNIT	SPECIFICATION
Model				GL-CHB100D
Driving system	Chassis brand/ model			FAW Jiefang
	Fuel type			Diesel
	Tyre model			7.5
	Axle base		m	3.66
	quantity of axles			2
	Max. driving speed		Km/h	60
	wheel base（front/back）		mm	1530/1600
Pumping system	Brand of diesel engine			Yuchai engine
	Diesel engine power		KW	85
	Driving mode			Hydraulic driving
	Main pump			Korea Handock
	Oil cylinder inner diameter × stroke		mm	Ф125×Ф80×1200
	Concrete cylinder inner diameter × stroke		mm	Ф200×1200
	Oil pressure of system		MPa	32
	Switch of H-pressure and L-pressure			Equipped
	Theoretical pumping pressure		Mpa	H-pressure	12
			Mpa	L-pressure	4
	Theoretical pumping frequency		times/min	H-pressure	8
			times/min	L-pressure	18
	Theoretic Pumping distance		m	Max. Vertical	120
			m	Max. Horizontal	300
	Fuel tank capacity		L	180
	Hydraulic Oil tank capacity		L	200
	Cooling mode of hydraulic system			Fan cooling
	Max. theoretical capacity		m³/h	H-pressure	20
			m>3/h	L-pressure	50
	Pumping distance (H-pressure)	Max. Horizontal	m	125A pipe	300
		Max. Vertical	m	125A pipe	120
	Hopper capacity		m3	0.6
	Feeding height		mm	≤1300
	Concrete slump		cm	14～23
	Max. aggregate diameter		mm	Crushed stone:40 / Pebble：50
	Valve			S Valve
	Lubrication mode			Automatic
Overall dimension	Total Length×total Width×total height(mm)		mm	7200×2100×2750
Full-load total weight			Kg	6500
