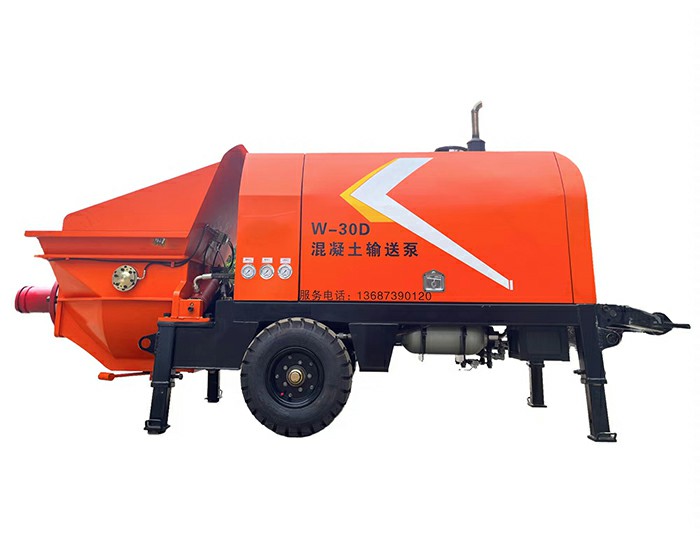

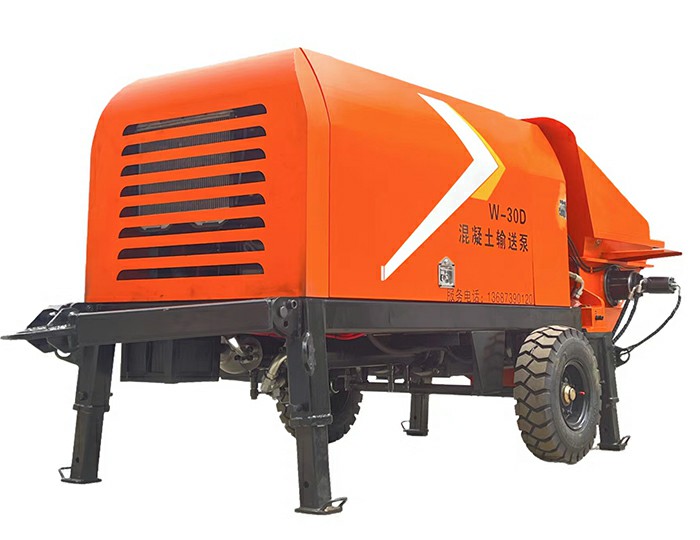

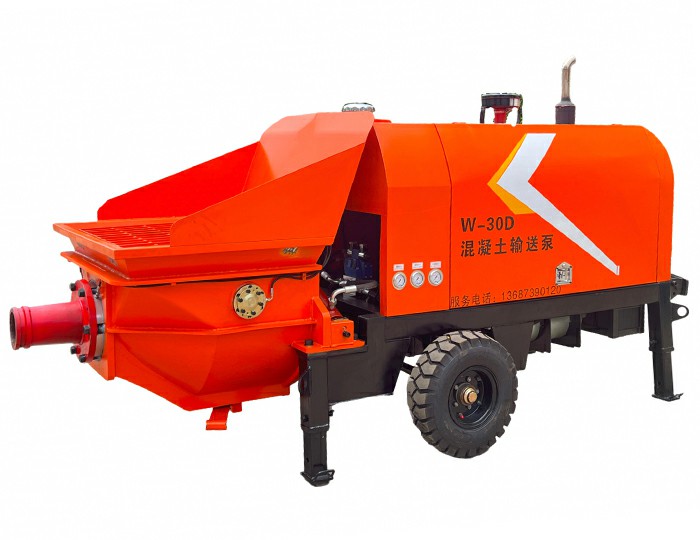

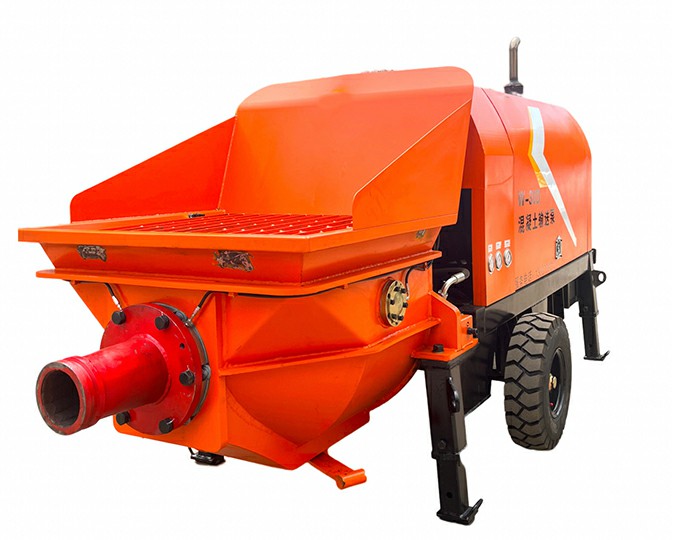

W-30D Concrete conveying pump

  • Production capacity: 19~22 m³/h

  • Concrete outlet pressure: 6Mpa

  • Conveying distance: Horizontal 100m/Vertical 60m

  • Maximum aggregate diameter: 40mm

Get a quote Send email

Description

Features

  • Stable
  • The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.
  • PLC Control
  • The electrical appliances adopt PLC centralized control, which is reliable in work, long in life, and easy to program and operate.
  • Special machine hopper
  • Use mold to press the hopper, not easy to accumulate material, good material absorption.

Parameters

Basic   performanceParameters
Main power42KW（engine）
Production capacity19~22 m³/h
Cylinder diameter200mm
Maximum aggregate diameter40mm
Conveying distanceHorizontal 100m/Vertical 60m
Hydraulic tank volume142L
Machine weight2450kg
Concrete outlet pressure6Mpa
Main system pressure20Mpa
Concrete distribution valveS-pipe valve
Hopper volume0.6m³
Feeding height1400mm
Slump of concrete140-220mm
Dimensions3400×1700×1100mm
