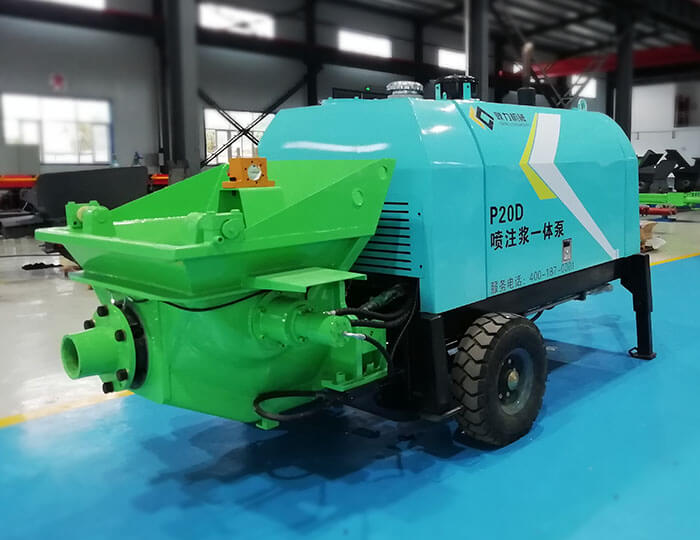

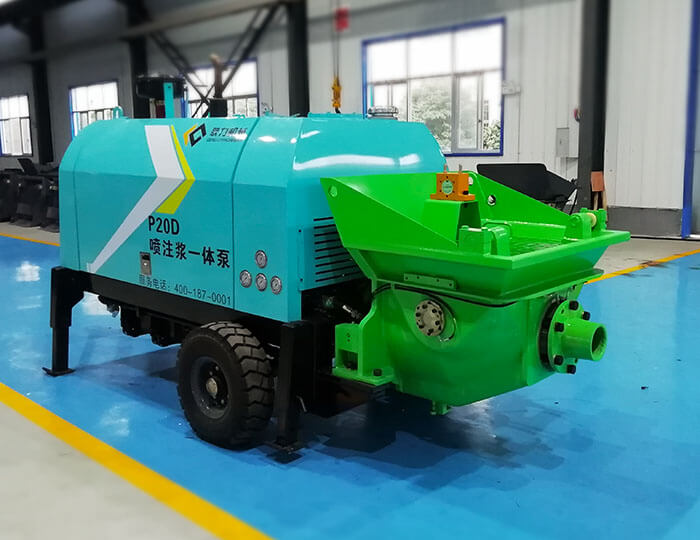

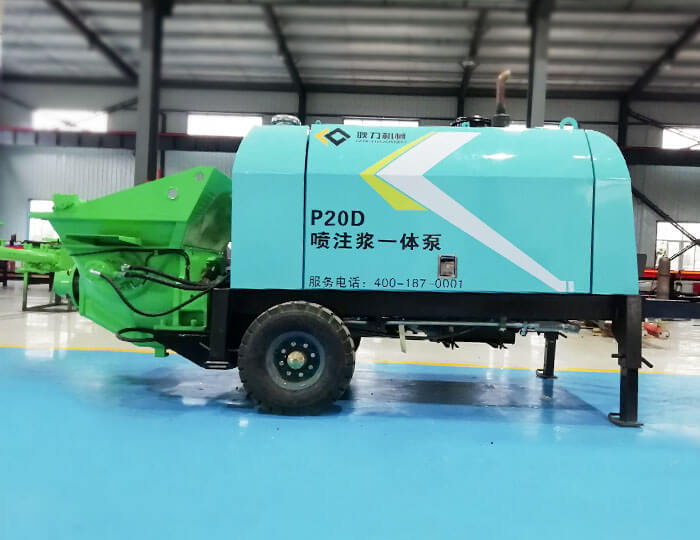

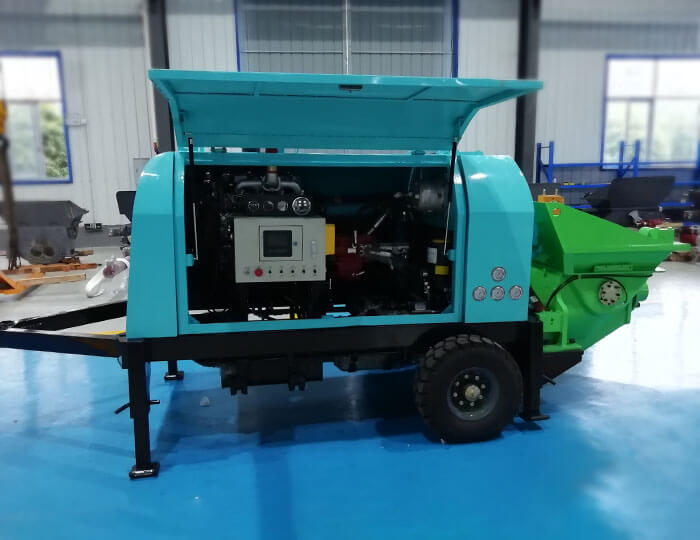

P20D Diesel Concrete shotcrete and grouting integrated pump

  • Production capacity ：3-22m³ /h

  • System pressure：22MPa

  • Working wind pressure: 0.4-0.6Mpa

  • Maximum diameter of aggregate: 15mm(shotcrete)/30mm


Get a quote Send email

Description

P20D is a kind of mechanical equipment that can be both shotcrete and grouting. The shotcrete uses the thrust generated by the hydraulic pump to make two oil cylinders alternately move back and forth to send the dense flow material from the conveying pipe to the mixed flow pipe. The compressed air forms a thin stream and is sent to the nozzle through the pipeline. A certain proportion of accelerator is added to the nozzle and sprayed directly on the sprayed surface; grouting directly sends the dense flow material to the pouring body from the conveying pipe.

Features

  • Stable
  • The whole vehicle has stable performance, few wearing parts, and low maintenance and use cost.
  • Wearable
  • High-manganese steel casting integrated sprinkler, smoother, more wear-resistant, shotcrete pulsation is small, and continuity is good.
  • PLC Control
  • The electrical appliances adopt PLC centralized control, which is reliable in work, long in life, and easy to program and operate.
  • Good continuity
  • The shotcrete has small pulsation and good continuity. The addition amount of accelerator is steplessly adjustable.

Parameters

                   Item                   Parameters
                   Production capacity                   3～22 m³/h
                   System pressure                   22MPa
                   Cylinder bore×stroke                   140mm×800mm
                   Working wind pressure                   0.4～0.6MPa
                   Maximum aggregate diameter                   15mm（ shotcrete）/ 30mm（grouting）
                   Lubrication system                   Manual +auto
                   Fuel tank volume                   142L
                   Dust around the machine                   ＜6mg/m³
                   Machine weight                   2400 kg
                   Outlet pressure of concrete                   8MPa
                   Main motor power                   42kW
                   Hopper volume                   0.3 m³
                   Feeding height                   1000 mm
                   Distribution valve of concrete                   S tube valve
                   Slump of concrete                   120 mm～180 mm
                   Cooling way of hydraulic oil                   Air cooling
                   Resilient rate                   ≤10%
                   Dimension                   3250×1550×1600 mm
