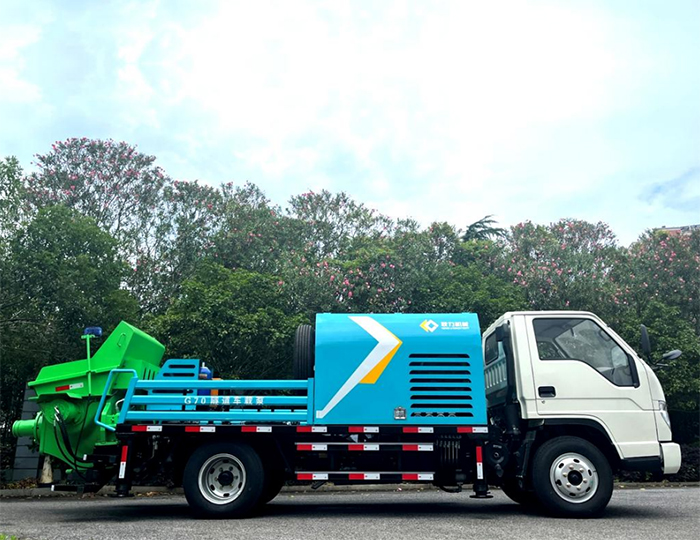

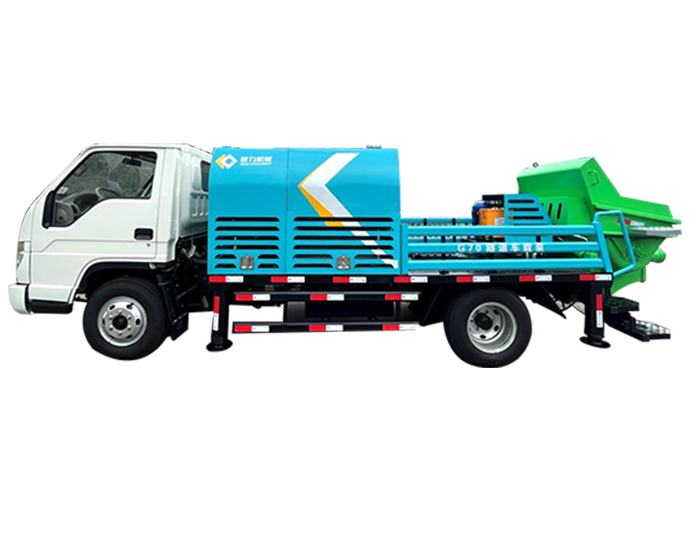

G70 Truck Mounted Concrete Pump

  • Max.concrete output: 70m³/h

  • Theoretical pumping distance: Vertical70/horizontal 200m

  • Max.pumping pressure: 7.5MPa

  • Motor power: 75kW

Get a quote Send email

Description

G70 Tunnel concrete pump truck is specially used for the pumpcrete of second lining.

Features

  • Heavy Foton truck chassis, strong power, high adaptability
  • Ideal for various road conditions in the tunnel, one machine for different sections.
  • Wireless remote control
  • Equipped with wireless remote controller, makes construction easier.
  • High pressure hydraulic system
  • High pumping pressure, less blockage.
  • High pumping efficiency
  • Originally imported hydraulic oil pump,230mm large diameter concrete cylinder, max.concrete output reaches up to 70m³/h, 20% higher efficiency when compared with other brands.

Parameters

ItemParametersItemParameters
Max.concrete   output70m³/hMax.pumping   pressure7.5MPa
Theoretical   pumping distanceVertical70/horizontal   200mMotor   power75kW
Concrete cylinder bore230mmHopper   volume0.6m³
Concrete outlet150mmFilling   height1450mm
Max.aggregate size40mmConcrete   distribution valveS valve
Lubrication systemAutomaticConcrete   slump120~180mm
ChassisFotonEngine   powr66kw
Wheelbase3360mmEngine   tank volume450L
Main oil pump displacement224mlTotal   weight7450kg
Dimension6960×2120×2230mm
