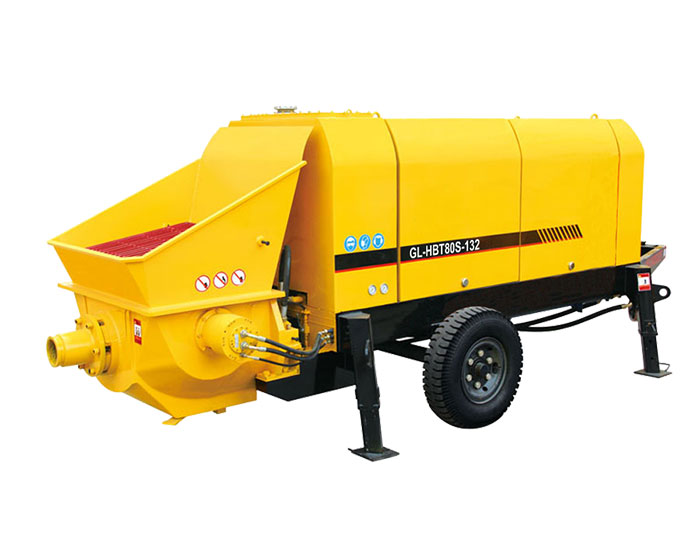

GL-HBT80S-132 Electric Concrete Pump

Get a quote Send email

Description

Features

Power system
Motor: We adopt the world-famous brands-Yantai motors and Beide motors of Siemens. Diesel: We adopt original VOLVO, DEUTZ and LOVOL diesel engines.

Main oil pump
The main oil pump is optional: German HAWE, Rexroth, Japanese Kawasaki, Korean Handok series.

Radiator
The radiator is air-cooled type, enabling the machine to work under the allowable highest temperature.

Lubrication system
Centralized lubrication system adopts progressive distributor which supplies every lubrication point with oil in turn, and the oiling time can be set. So the oiling is accurate and the oil consumption can be saved.

Parameters

Item	Unit	GL-HBT50S-55	GL-HBT60S-90	GL-HBT80S-110	GL-HBT80S-132
Theoretical delivery volume	m³/h	50	60	60	80
Theoretical delivery pressure	Mpa	13	13	13	16
Max. delivery frequency	/min	18	22	22	23
Theoretical delivery height	m	130	150	180	240
Theoretical delivery distance	m	400	500	600	600
Type of distribution valve		S Valve
Specification of delivery cylinder	mm	Φ200×1200	Φ200×1650	Φ200×1650	Φ200×1650
Specification of main oil cylinder	mm	Φ125/Φ80×1200	Φ125/Φ80×1650	Φ125/Φ80×1650	Φ140/Φ90×1800
Oil tank capacity	L	300	500	500	500
Hopper capacity	L	600	600	600	600
Feeding height	mm	1400	1400	1400	1400
Outlet diameters	mm	Φ185	Φ185	Φ185	Φ185
Delivery pipe inner diameter	mm	Φ125	Φ125	Φ125	Φ125
Electric Motor Power	Kw	55	90	110	132
Rated voltage	V	380 （Customizable）
Fuel tank capacity	L	150	150	150	150
Hydraulic oil circuit type		Open circuit
Max. oil pressure of main system	MPa	25	32	32	32
Max. oil pressure of mixing system	MPa	14	14	14	14
Max. mixing rotate speed	r/min	24	24	24	24
Concrete slump	mm	80～200	80～200	80～200	80～200
Allowable max dia. of aggregate	mm	Pebble 50，crushed stone 40
Dimension（length×width×height）	mm	5270×1860×2580	6600×1930×2190	6600×1930×2190	6600×1930×2190
Weight	Kg	4000	6300	6500	6800
Pull speed	Km/h	≤8	≤8	≤8	≤8
