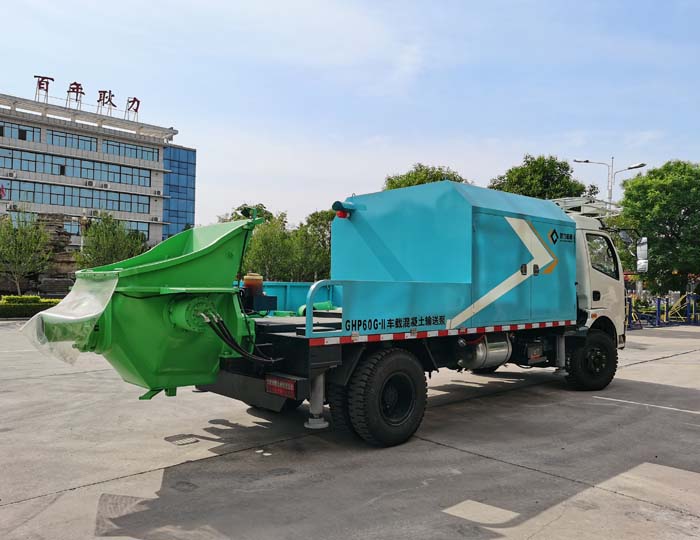

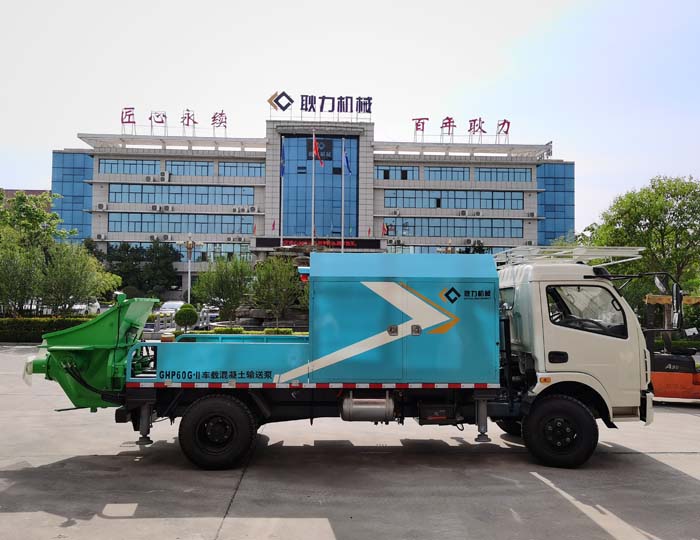

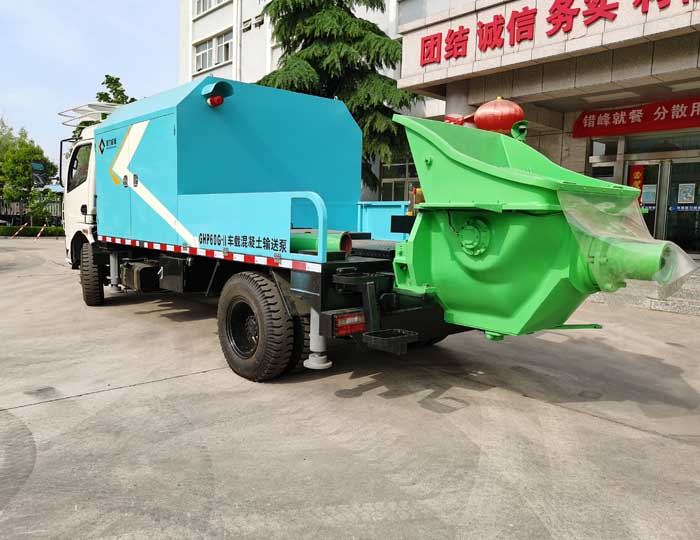

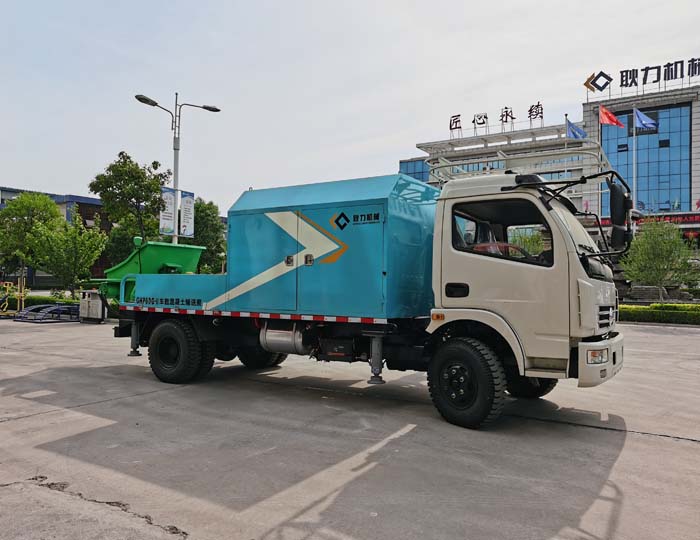

GHP60G-Ⅱ Truck-mounted concrete pump

Description

GHP60G-Ⅱ truck-mounted concrete Delivery pump adopts self-propelled wheeled chassis and thrust generated by hydraulic pump to delivery dense flowing material directly from delivery pipe to the casting surface ;It is a mechanical equipment integrating mechanism, electro, and hydraulic, and widely used in highway, railway, tunnel, hydroelectric power station and etc.

Features

• High pumping pressure, strong anti-plugging capacity
• High pumping pressure, strong material adaptability, and strong anti-plugging capacity. Outlet pressure at 8MPa, and system pressure at 32MPa.

• Equipped with a cab for easy transition
• Truck-mounted structure with a cab for easy transition

• Wireless remote control &wired remote control to satisfy various operational requirements
• Specially equipped with a wireless remote controller and a wired remote controller, convenient for the communication and operation between conductors above the secondary liner and the lower discharge personnel.

• High pumping pressure, greatly improved working efficiency
• Pumping 60m³ per hour to meet construction requirements and improve working efficiency

• Wire-controlled handle device to make operation more convenient
• Wire-controlled handle device to make operation more convenient

• The side panel of rear bucket can be opened and closed as needed, convenient for loading and unloading.
• Specially designed to make the side panel open & close easily, make it convenient to load and unload

• Cab with ceiling design for easier construction
• Cab with ceiling design to prevent concrete from falling on the glass.

• Mature and stable chassis, strong mobility, easy movement
• Self-propelled wheeled chassis with strong mobility, convenient transition and flexible movement

• High automation, easy operation
• Electrical appliances are centralized control by PLC with reliable performance, long life, programmed working and easy operation

• Grouting with small pulsation and good continuity
• Machine has stable performance, less wearing parts, small grouting pulsation, good continuity and low maintenance cost
