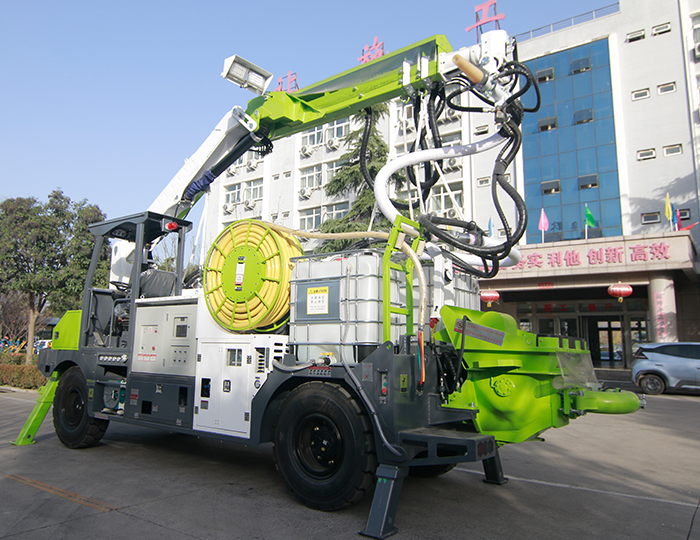

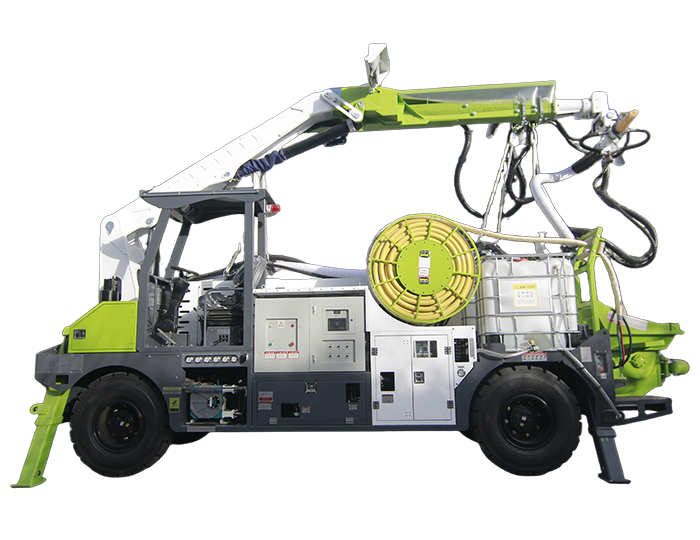

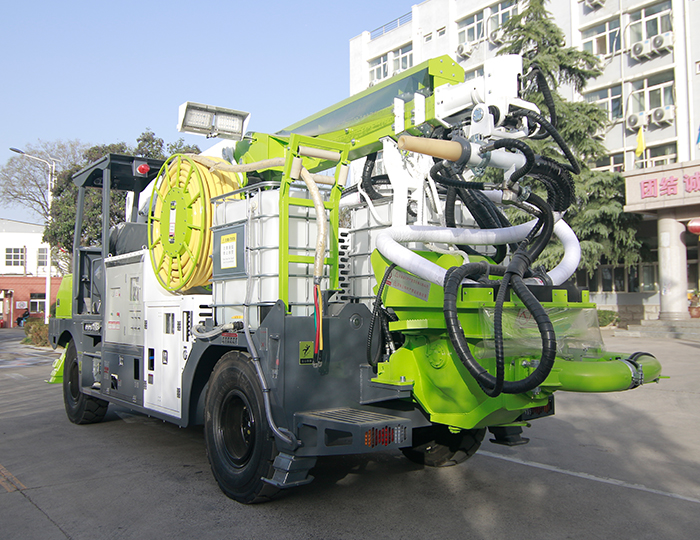

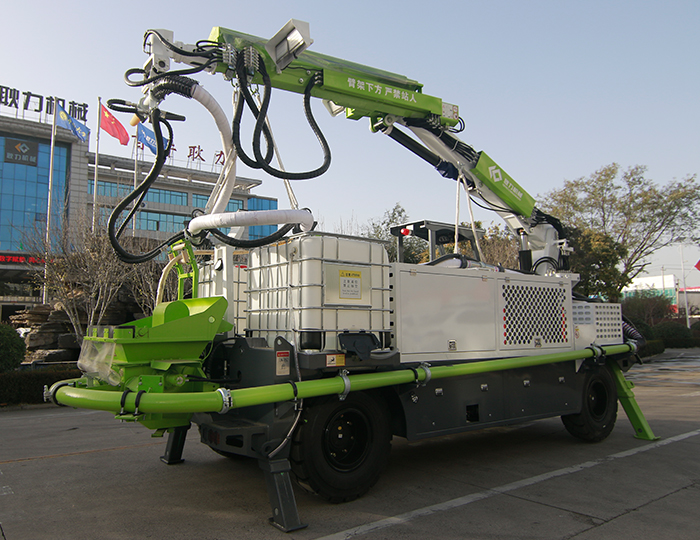

GHP5016 Engineering Concrete Wet Spray Trolley

Theoretical spraying displacement：50m³/h
Outlet pressure of concrete:65bar
Minimum working section height: 2.5m
Total weight：17T

Get a quote Send email

Description

GHP5016 is mainly used in railways,highway tunnels,slope protection,mine roadway water conservancy and hydropower projects,foundation pit support,military and civil underground projects,etc.

Features

Robot arm
After tens of thousands of fatigue strength tests,long service life,stable and reliable performance,wide operatio range,hydraulic controlled,sensitive operation, more convenient to maintain.

Drive axle
Adopting enhanced wet brake steering drive axle,front-wheel drive,four-wheel steering, strong adaptability to complex road conditions,stable and reliable performance.

Electronic control system
Adopting a special controller for construction machinery,more resistant to dust and water; Low failure rate,strong adaptability to the harsh environments. Integrated with cloud platform system to achieve remote monitoring and fault diagnosis.

Chassis system
118kW diesel engine and with hydraulic transmission,electronically controlled power shift without parking,four gears for forward,two gears for reverse,more convenient to control,stable performance.

Concrete pump
Adopting large pumping cylinders, which has strong suction capacity, and the pumping capacity reaches 50m³/h,reducing wear and extending service life greatly.

Cable reel
Standard equipped with tensile and wear-resistant 3×95² cable,which has strong resistance to voltage fluctuation and prolongs service life.

Parameters

Item	Basic performance	Unit	Parameters
Machine data	Dimension(L×W×H)	mm	7910×2645×3270
Machine data	Total weight	kg	17000
Concrete pump	Max.concrete output	m3/h	50
	Drive cylinder	mm	ф110
	Concrete cylinder bore	mm	ф200
	Concrete cylinder stroke	mm	1000
	Delivery pipe	mm	ф125～ф90
	Max.aggregate size	mm	ф15
	Hopper volume	m3	0.3
	Concrete outlet pressure	bar	83
Chassis	Traveling way		Wheel type
	Drive axle		Wet brake axle
	Steering		Front wheel steering
	Driving way		Four wheel drive
	Min.turning radius	m	11.4
	Engine power	kw	118
	Wheelbase×Wheel tread	mm	4400×1887
	Traveling speedⅠ/Ⅱ/Ⅲ/IV	km/h	5/10/17.5/20
	Max.climbing degree		36%（20°）
	Min.ground clearance	mm	300
	Braking distance	m	5(20km/h)
Boom	Max.spraying height	m	Depth 7.4～Height 16
	Max.spraying width	m	±13.5
	Boom rotation angle	（°）	270
	Rotation angle-nozzle	（°）	±180
	Left-right rotation angle-nozzle	（°）	±120
	Nutation angle	（°）	8（continuous）
	Min.working height-Tunnel	m	5
Cable reel	Specification		3×952
Cable reel	Length	m	80
Additive pump	Pump model		25R-50-1/7
	Pump type		Hose pump
	Driving way		Inverter motor drive
	Flow rate	L/h	0～1200
	Additive tank volume	L	1500
	Max.outlet pressure	bar	12
Hydraulic system	Main motor power	kw	75
	Oil tank volume	L	410
	Degree of hydraulic oil pollution		NAS1638-9
	Oil pump displacement	ml/r	190
Cleaning system	Water pump model		3WZ-1814HM
	Water tank volume	L	140
	Driving way		Hydraulic
Air compressor	Motor power	kW	90/110
	Air volume	m³/min	16/20
	Air pressure	MPa	0.7/0.8
