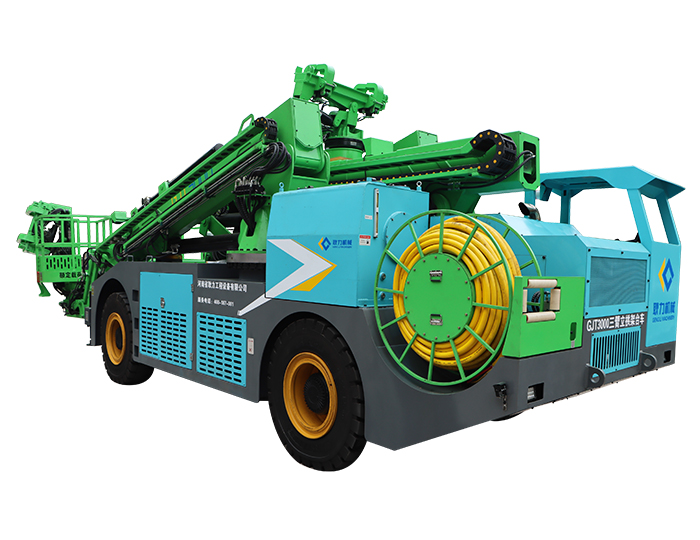

GJT3000 Tunnel Arches Installing Machine

Total system power: 132kw(Engine)+90kw(Electric motor)
Machine height with arches: 4200mm
Operation way: Wireless remote control
Working power: Engine/Electric motor

Get a quote Send email

Description

GJT3000 Tunnel Arches Installing Machine is a kind of new tunnel construction equipment which has many functions, such as arch installation, anchor rod mesh installation, steel mesh laying, auxiliary drilling, charging, dealing with undercut operation, copying quality inspection, air/water pipe installation, defect repair and so on.

Features

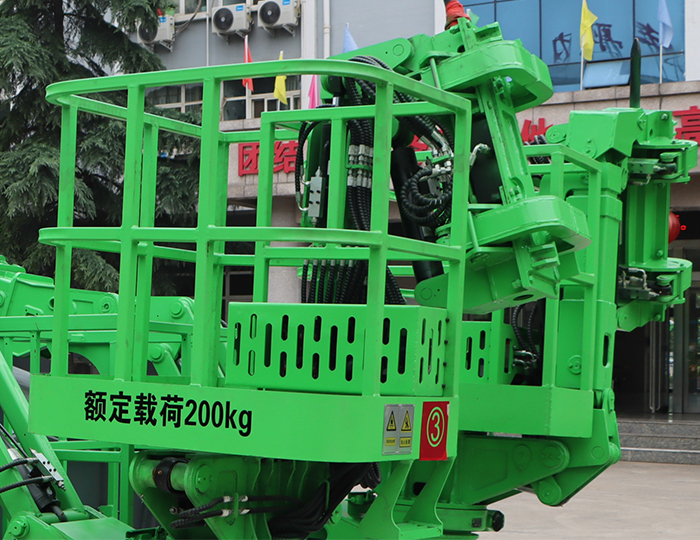

Retractable hanging basket, efficiently erect arch, mechanized construction work
The retractable hanging basket can replace the tunnel platform for auxiliary construction, meet the needs of various operations, and efficiently erect the arch and mechanized construction operations.

Support remote operation, easier operation

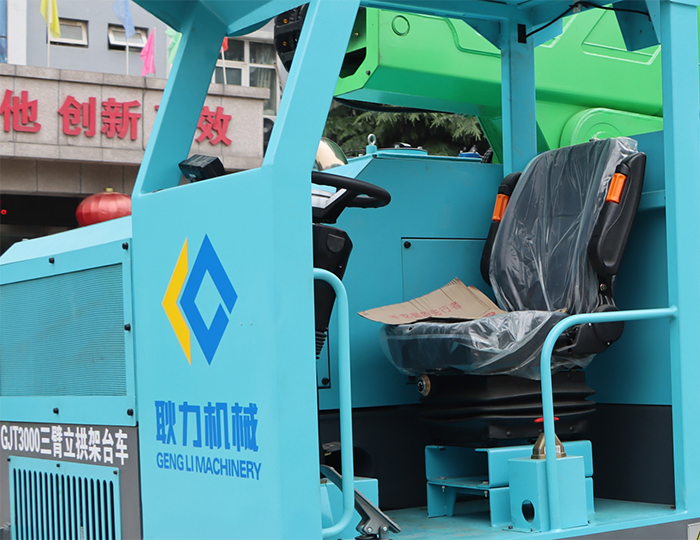

The operation mode adopts remote control operation, which can be operated in three places, such as hanging basket operation table operation and electric control box operation, so as to facilitate the operation of personnel in multiple positions.

Parameters

Item	Basic Performance	Unit	Parameters
Machine data	Dimension(L×W×H)	m	10×2.9×3.3
	Total weight	T	30
	Type		Wheel/Engineering chassis/3 Boom
	Total system power	kw	132(Engine)+90(Electric motor)
	Cable reel length	m	80
	Steel arches carrying function		Yes
	Machine height with arches	mm	4200
	Operation way		Wireless remote control
Boom	Working power		Engine/Electric motor

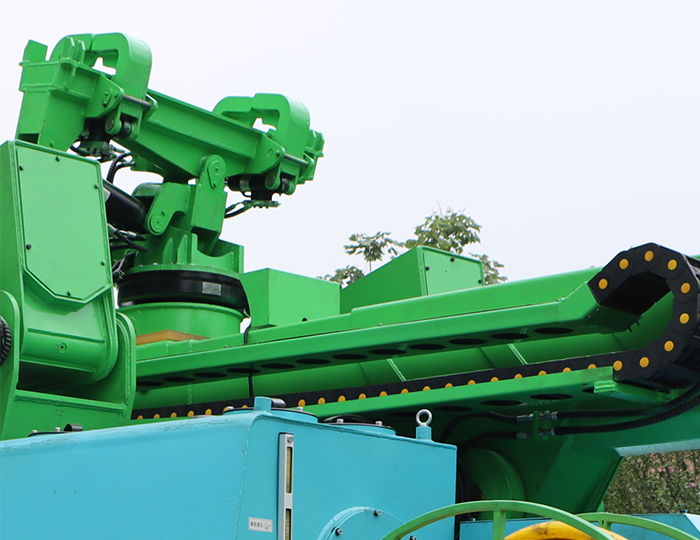

	Main boom		Folding+Two-stage telescopic+Bucket+Gripper
	Side boom		Three-stage telescopic+Bucket+Gripper
	Main boom rotation angle	°	±45°
	Side boom rotation angle	°	0~45°
	Main boom pitching angle	°	Folding boom 0~90°，Telescopic boom -2~110°
	Side boom pitching angle	°	-17~50°
	Max.working width	m	21
	Max.working height	m	13
	Main boom telescopic stroke	mm	4140
	Side boom telescopic stroke	mm	6270
	Max.main boom loading weight	t	3
	Max.side boom loading weight	t	0.9
	Mechanical gripper mode		3 Mechanical grippers
	Main boom telescopic stroke	mm	4140
	Side boom telescopic stroke	mm	6270
	Max.main boom loading weight	t	3
	Max.side boom loading weight	t	0.9
	Mechanical gripper mode		3 Mechanical grippers
	Main boom telescopic stroke	mm	4140
Chassis	Max.travelling speed	kw/h	14
	Driving way		Four wheels driving
	Steering		Four wheels steering
	Engine power	kw	132
	Tyre specification		14.00-25 Solid tyre
	Max.climbing degree	°	15
	Approach angle	°	25°
	Departure angle	°	20°
	Min.turning radius	m	Inner 3.5
	Min.ground clearance	mm	340
