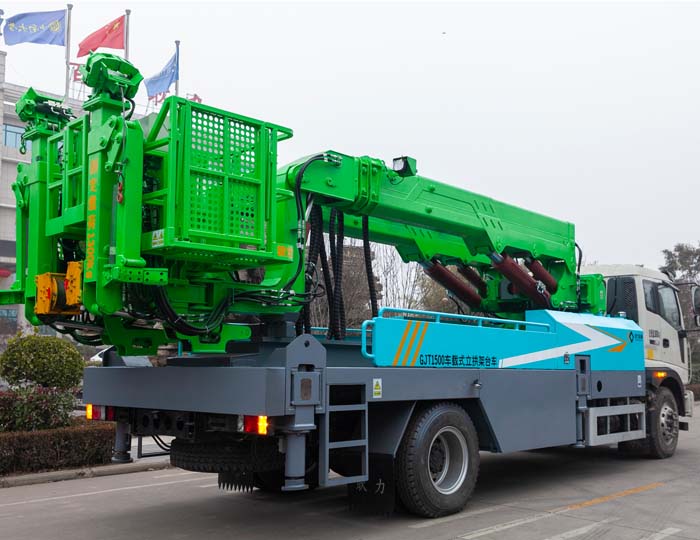

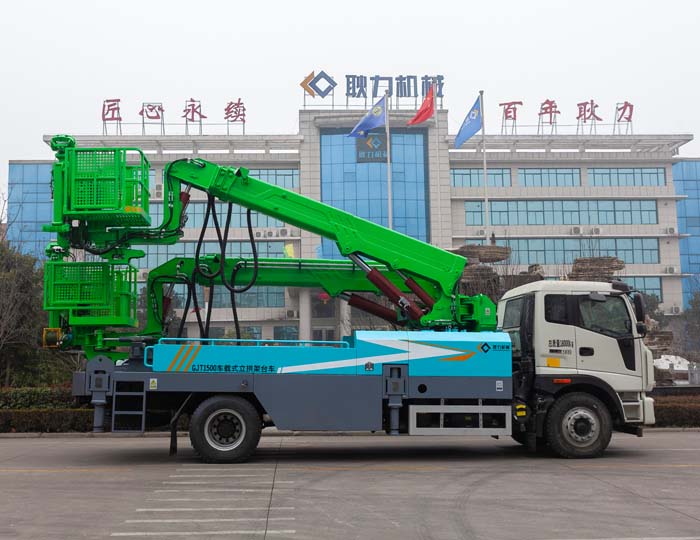

GJT1500 Truck-mounted vertical arch frame trolley

Engine power: 132kw
Pitch angle of working arm: -20°~60°
Horizontal swing angle of working arm: ±40°
Maximum lifting height: 12400mm

Get a quote Send email

Description

GJT1500 vehicle-mounted vertical arch trolley is a kind of new tunnel construction equipment which has many functions, such as arch installation, anchor rod mesh installation, steel mesh laying, auxiliary drilling, charging, dealing with undercut operation, copying quality inspection, air/water pipe installation, defect repair and so on.

Features

The whole machine adopts automobile chassis
The driving speed can reach 80km/h, which is flexible and convenient for transition

No need to connect to the power supply, the equipment is fast in place
One device can take care of multiple aspects, reducing equipment investment. Vehicle chassis power, no need to connect to an external power source, and the equipment can be installed quickly.

Boom + 2 hanging basket + 2 mechanical gripper structure
Each arm can realize the automatic grabbing of the arch frame, the manipulator end can be fine-tuned, and the working device can slide as a whole

Retractable hanging basket, efficiently erect arch, mechanized construction work
The retractable hanging basket can replace the tunnel platform for auxiliary construction, meet the needs of various operations, and efficiently erect the arch and mechanized construction operations.

Support remote operation, easier operation
The operation mode adopts remote control operation, which can be operated in three places, such as hanging basket operation table operation and electric control box operation, so as to facilitate the operation of personnel in multiple positions.

With voice broadcast function, high security
Voice broadcast is configured during operation to effectively prevent misoperation and greatly improve safety.

Parameters

Item	Parameters
Transport size (length×width×height)	9600×2520×3250mm
Shipping weight	18t
Engine power	132kw
Maximum travel speed	80km/h
Maximum climbing ability	27%
Minimum ground clearance	310mm
Approach / departure angle	20°、15º
Pitch angle of working arm	-20°~60°
Horizontal swing angle of working arm	±40°
Telescopic stroke of working arm	5470mm
Maximum lifting height	12400mm
Horizontal swing range	17000mm
Maximum load of boom	1500kg
Lifting load	1000kg
Maximum clamping load	1300kg
Sliding stroke of arm base	3800mm
