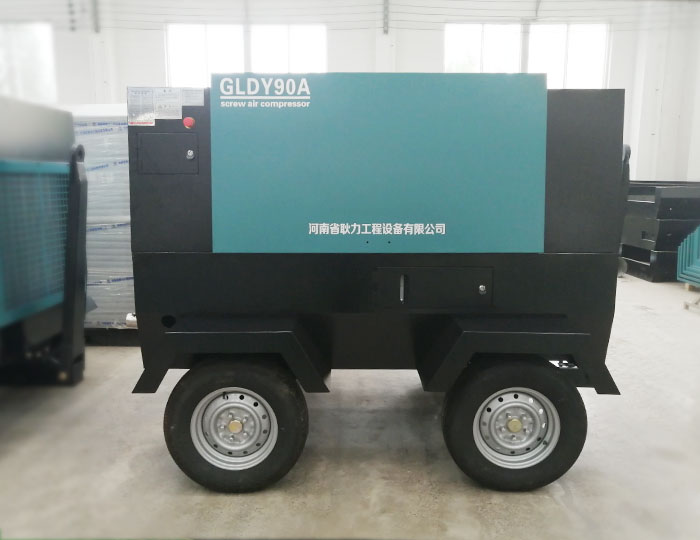

GLDY90A Mobile Air Compressor

  • Exhaust volume: 16（m3/min）

  • Exhaust power: 0.8MPa

  • Noise value at one meter: 82±3dBA

  • Outlet gas lubricating oil carry: 1～3PPM

Get a quote Send email

Description

Features

  • Easy operation, just press
  • Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.
  • Operator understands operation condition at real time, include operation status and failures.
  • Reliable European-standard key electrical control elements ensure stable operation, fine technology

Parameters

Model GLDY90A
Exhaust volume 16（m3/min）
Exhaust power 0.8MPa
Noise value at one meter 82±3dBA
Outlet gas lubricating oil carry 1～3PPM
Lubricating oil quantity 70L
Cooling method Air cooling
Drive way Direct drive
Exit size DN50

electromotor		 Motor rotating speed 2985rpm
Motor power 90Kw
Motor protection level/Insulation  IP55F
Voltage &Frequency 380V/50Hz
Dimension long 2305mm
wide 1660mm
high 1910mm
Total weight 1620kg
