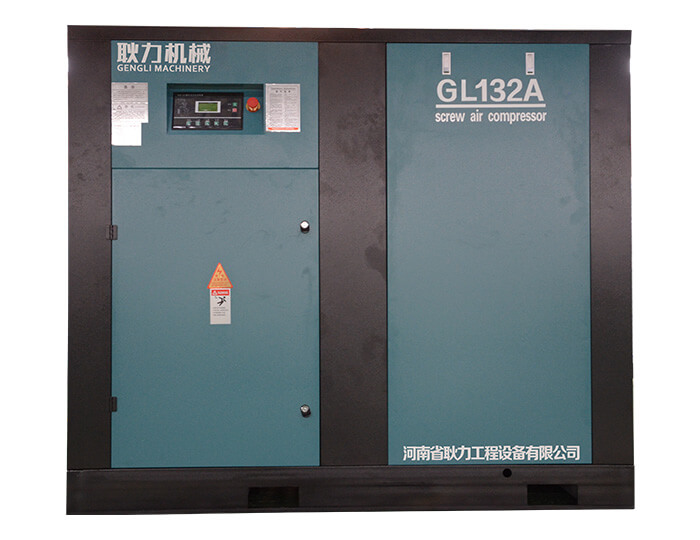

GL132 Electric Screw Air Compressor

  • Working Pressure：0.8MPa

  • Motor Speed：1485r/min

  • Motor Power：132kw

  • Dimension：2100×1580×1650mm

Get a quote Send email

Description

Features

  • operation condition at real time
  • Operator understands operation condition at real time, include operation status and failures.
  • Reliable European-standard
  • Reliable European-standard key electrical control elements ensure stable operation, fine technology
  • Operation data like emission temperature
  • Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.
  • low vibration
  • Low noise and low vibration.

Parameters

Model GL132 Displacement 24m3/min
Working Pressure 0.8MPa Motor Power 132kw
Motor Speed 1485r/min Drive Type Direct connect
Noise value in 1m 82±3 dB(A) Cooling Type Air cool
Lubrication oil volume 70L Outlet gas lubricating oil carry 1-3ppm
Start Type Star triangle start Outlet size DN65
Total Weight 2350kg Dimension 2100×1580×1650mm
