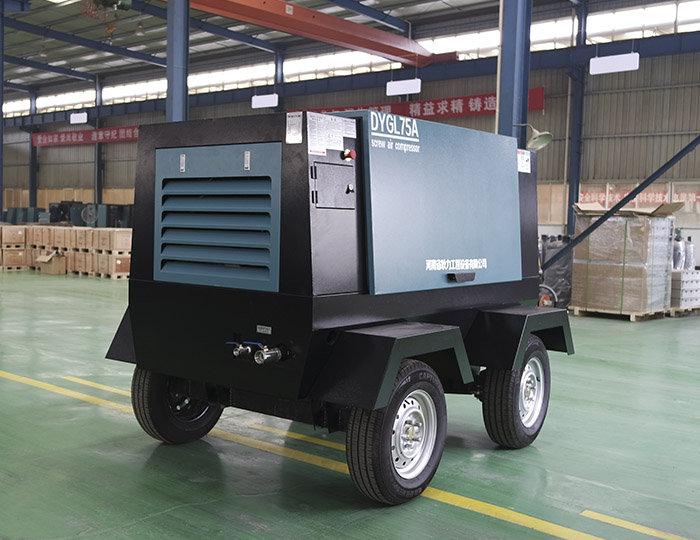

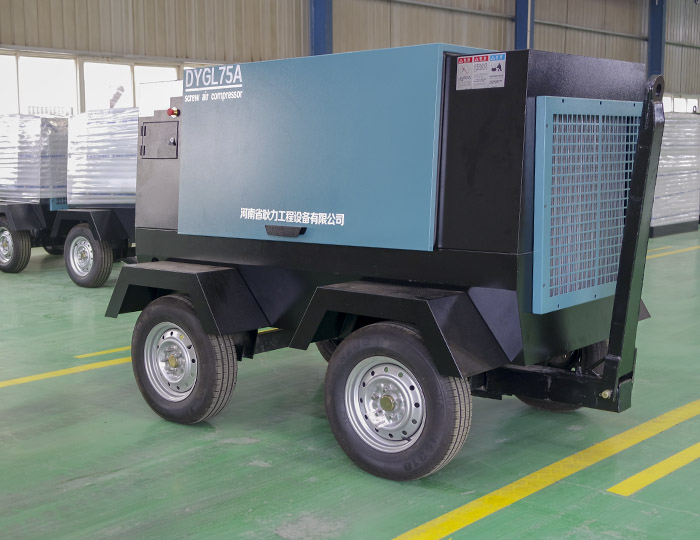

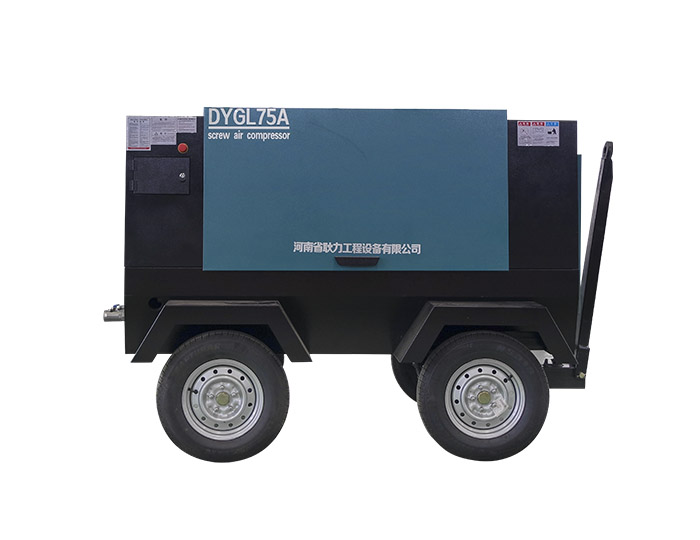

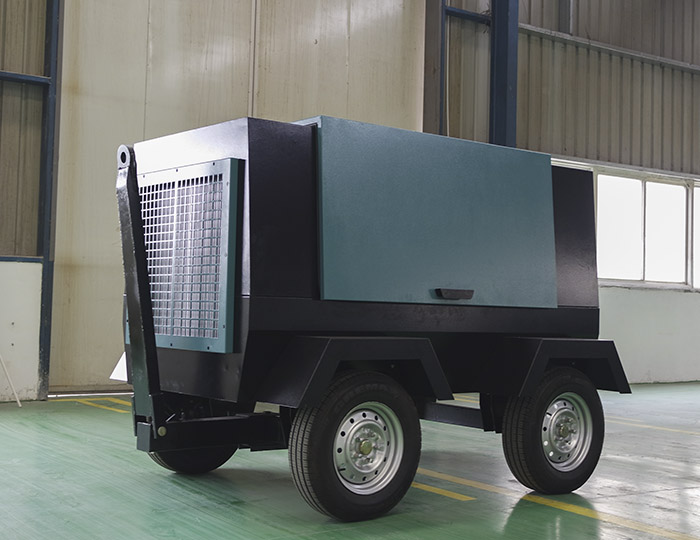

GLDY75A Mobile Electric Screw Air Compressor

  • Working Pressure：0.8MPa

  • Motor Power：75kw

  • Lubrication oil volume：50L

  • Cooling Type：Air cool

Get a quote Send email

Description

Features

  • Easy operation, just press
  • Operation data like emission temperature, exhaust pressure, oil pressure, operation duration and voltage are shown.
  • Operator understands operation condition at real time, include operation status and failures.
  • Reliable European-standard key electrical control elements ensure stable operation, fine technology

Parameters

Model GLDY75A Displacement 13m3/min
Working Pressure 0.8MPa Motor Power 75kw
Motor Speed 2985r/min Drive Type Direct connect
Noise value in 1m 82±3 dB(A) Cooling Type Air cool
Lubrication oil volume 50L Outlet gas lubricating oil carry 1-3ppm
Start Type Star triangle start Outlet size 11/2'' 3/4''
Total Weight 1500kg Dimension 2305×1660×1710mm
