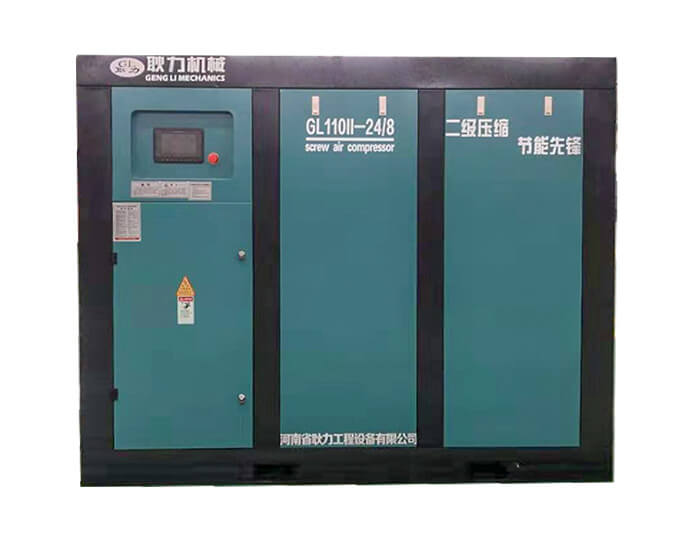

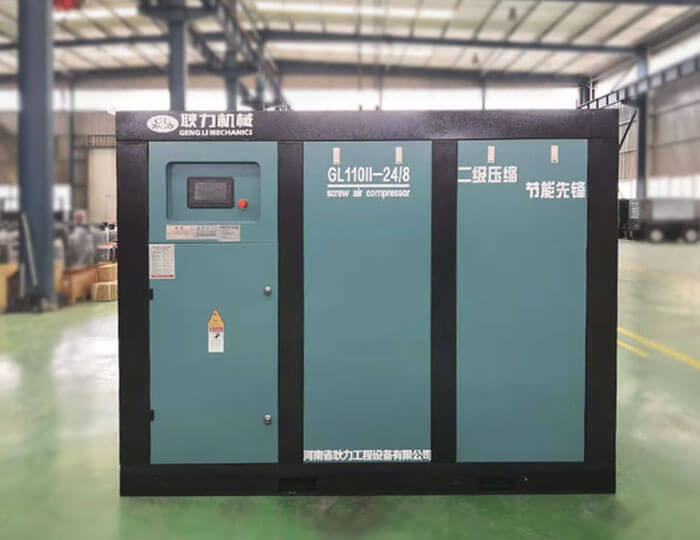

GL110A-II Electric Screw Air Compressor

  • Working Pressure：0.8MPa

  • Motor Power：110kw

  • Start Type：Star triangle start

  • Lubrication oil volume：70L

Get a quote Send email

Description

Features

  • The main machine adopt the design concep of large rotor low speed
  • The Main shaft speed is 1480rpm, low noise and low vibration
  • Two-stage mainframes are more energy-efficient than single-stage mainframes.
  • Large starting torque, more reasonable structure, energy saving.

Parameters

Model GL110A-II Displacement 24m3/min
Working Pressure 0.8MPa Motor Power 110kw
Motor Speed 1485r/min Drive Type Direct connect
Noise value in 1m 82±3 dB(A) Cooling Type Air cool
Lubrication oil volume 70L Outlet gas lubricating oil carry 1-3ppm
Start Type Star triangle start Outlet size DN80
Total Weight 2150kg Dimension 2400×1600×19mm
