Tunnel Fan

Rotating speed: 2980r/min
Noise: ≤90 dB(A)

Get a quote Send email

Description

SDF-ⅠⅡⅢⅣ series counter-rotating high-pressure axial flow tunnel fans are mainly used in high-speed railways, expressways, railways, subways, water diversion tunnels, chemical warehouses, municipal cable tunnels, metal mine tunnels and other fields. The temperature of the conveying medium does not exceed 60 °C, the temperature is not greater than 95±3% (25 °C) and non-corrosive.

Features

The overall structure is simple and compact

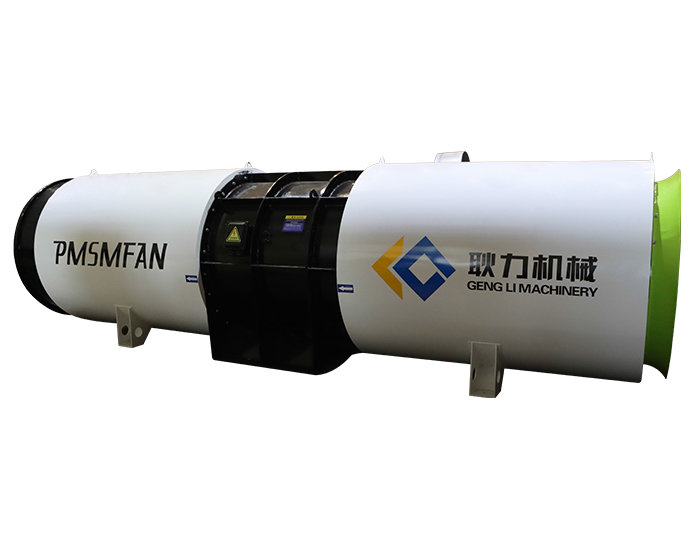

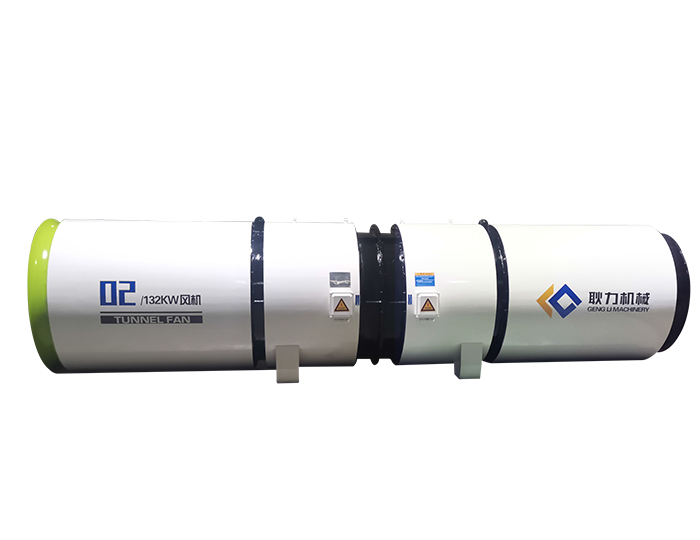

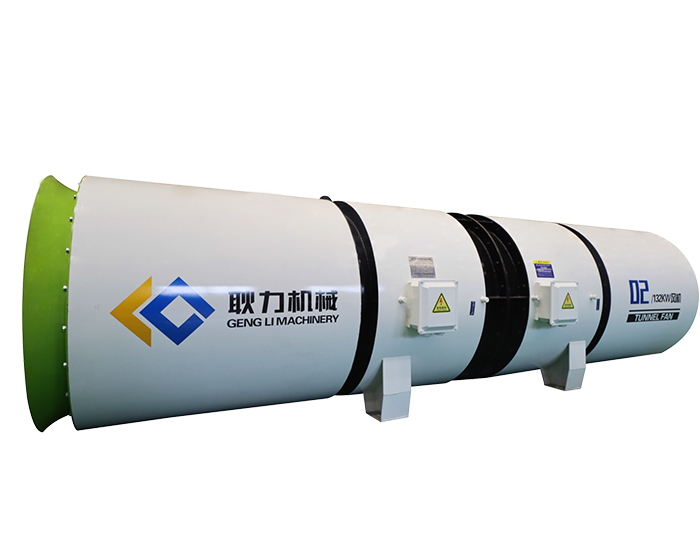

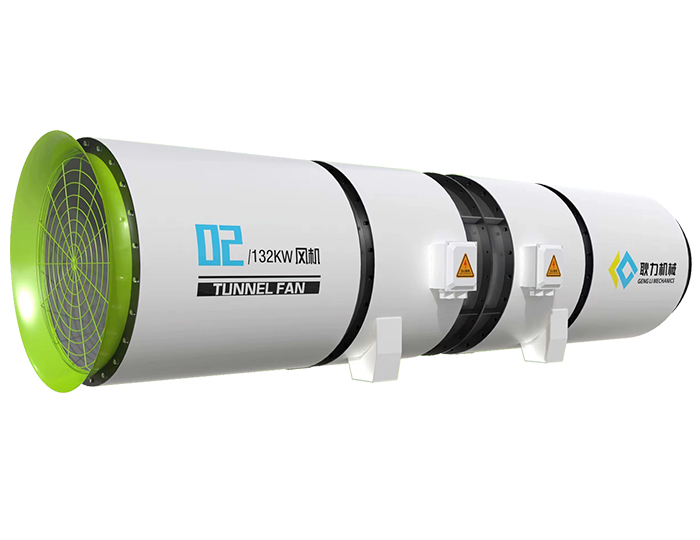

This series of ventilators are composed of a current collector, a primary fan, a secondary fan, a motor, and a bipolar muffler. The body and structure are welded by steel plates, and the impeller is made of high-pressure precision casting of aluminum alloy.

Advanced technology
The impeller adopts the international advanced three-dimensional flow aerodynamic theory, variable-sweep combined orthogonal blades and aircraft turbine engine blades and many other high-tech designs and manufactures, which are at the advanced level at home and abroad.

Reduce energy consumption and save energy
According to the length of the tunnel excavation face and the different ventilation requirements of the roadway, it can be used as a whole machine or in stages, so as to reduce energy consumption and save energy. It is an ideal equipment for long-distance local ventilation in tunnel excavation.

Ultra-quiet
The muffler adopts an outsourcing compound noise reduction device, and the main engine is equipped with a muffler, and the whole machine has the characteristics of ultra-quiet.

Parameters

Single speed/soft start/variable frequency fan SDDF-I/R/BP technical performance parameters
Model	Rotation r/min	Flow m³/h	Pressure Pa	Noise	Motor		Power
Model	Rotation r/min	Flow m³/h	Pressure Pa	dB(A)	Model	Type	(KW)
5.6	2980	14127-21236	1925-3537	≤90	Y160M-2	I/R/BP	2×11
6	2980	18924-25660	2136-4523	≤90	Y160M-2	I/R/BP	2×15
6	2980	19500-27800	2210-4750	≤90	Y160L-2	I/R/BP	2×18.5
6.3	2980	23718-33826	4341-6435	≤90	Y180M-2	I/R/BP	2×22
6.3	2980	24707-35900	4450-6580	≤90	Y180L2-2	I/R/BP	2×30
7.1	2980	33207-42662	5030-7220	≤90	Y200L2-2	I/R/BP	2×37
7.1	2980	34280-43880	5160-7352	≤90	Y220M-2	I/R/BP	2×45
8	2980	43305-59100	5030-8231	≤90	Y250M-2	I/R/BP	2×55
8	2980	45686-68879	5181-8429	≤90	Y25OL-2	I/R/BP	2×75

Project case

Philippines Atimonan Project

GYP-90 Wet Shotcrete Machine is widely used in Mexico

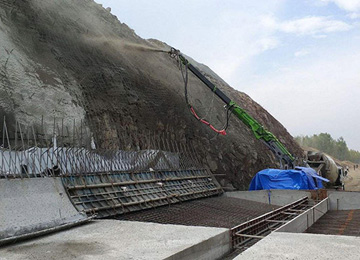

Manila Airport Foundation Pit Slope Protection
