Philippines Atimonan Project
Production capacity: 3-9m³/h
System pressure: 22MPa
Working air pressure: 0.6～0.8MPa
Maximum aggregate diameter: 15mm
Description

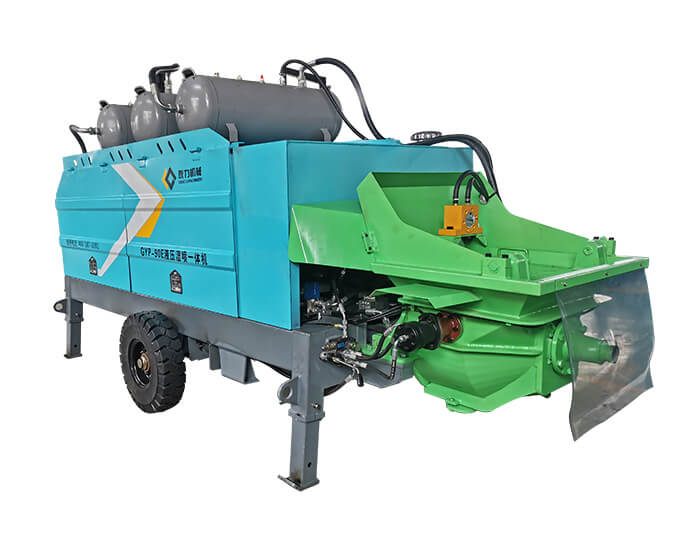

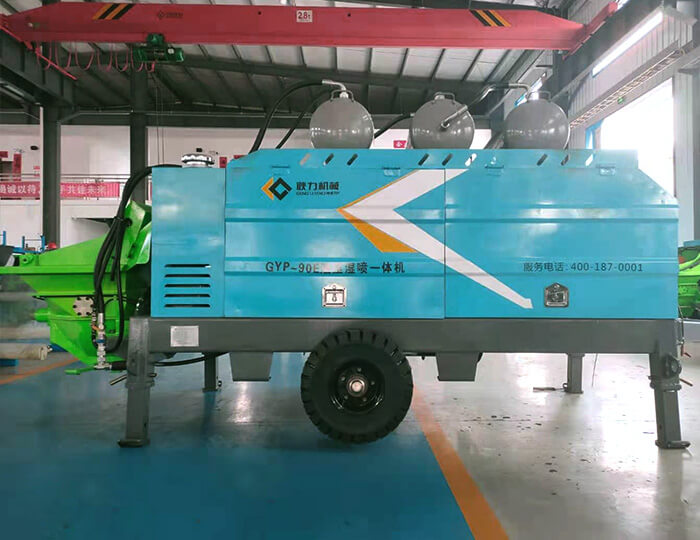

GYP-90E hydraulic wet shotcrete machine is a concrete pumping equipment with integrated air compression system. It uses the thrust generated by the hydraulic pump to make two oil cylinders reciprocate alternately, and send the dense flow material to the mixed flow of the sprinkler through the pipe. A thin stream is formed at the nozzle by compressed air, and a certain proportion of accelerator is added to the nozzle and sprayed directly onto the spray surface; it is widely used in construction of houses, highways, railways, tunnels, hydropower stations and other projects.Features
Parameters
| Basic performance | Parameters |
| Production capacity | 3-9m³/h |
| System pressure | 22MPa |
| Outlet pressure of concrete | 6MPa |
| Motor power of Pumping | 22KW |
| Cylinder bore×stroke | 125*500mm |
| Hopper volume | 0.15m³ |
| Working air pressure | 0.6～0.8MPa |
| Feeding height | 910mm |
| Maximum aggregate diameter | 15mm |
| Distribution valve of concrete | S tube valve |
| Lubrication system | automatic |
| Slump of concrete | 120-180mm |
| Fuel tank volume | 150L |
| Cooling method | Air cooling |
| Air compressor displacement | 6m3/min |
| Dust around the machine | ＜6mg/m³ |
| Rated exhaust pressure | 0.8MPa |
| Maximum exhaust pressure | 0.8MPa |
| Unit input specific power | 8.1KW/m3/min |
| Motor speed of Air compressor | 2950r/min |
| Resilient rate | ≤10% |
| Dimension | 3500×1650×1700mm |
| Machine weight | 2350kg |
