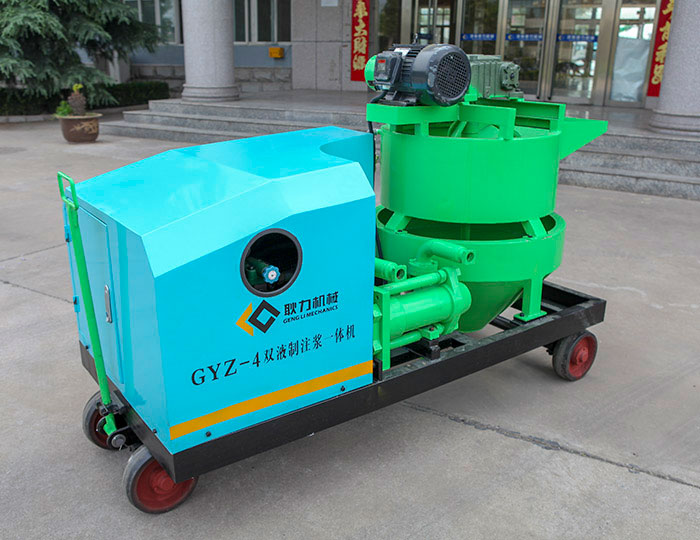

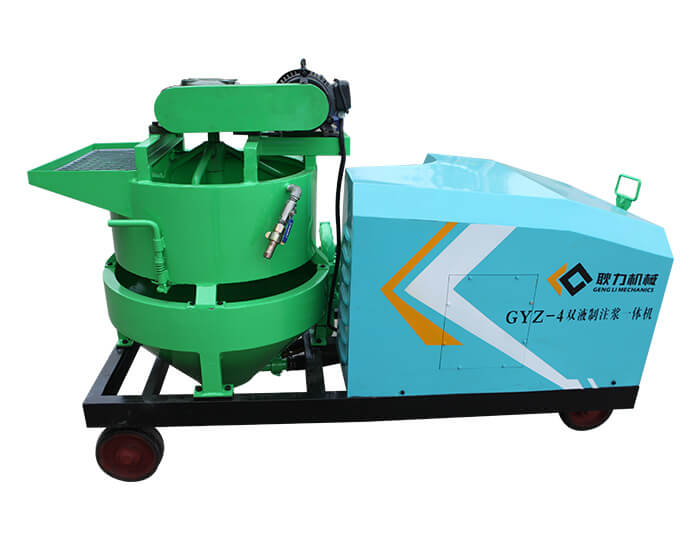

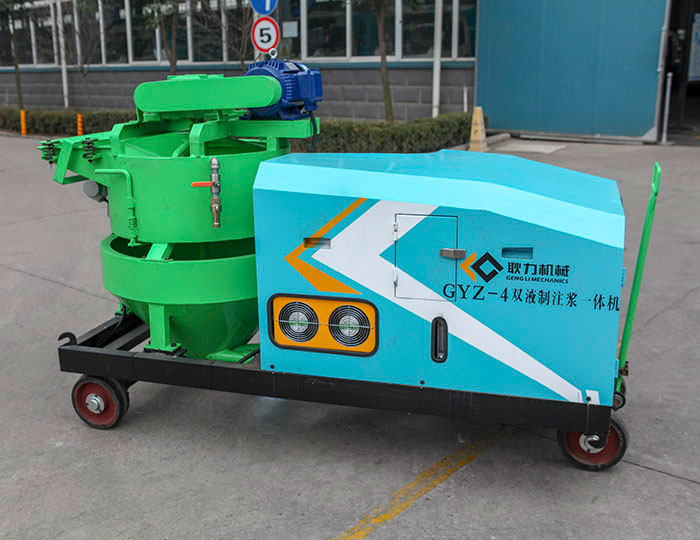

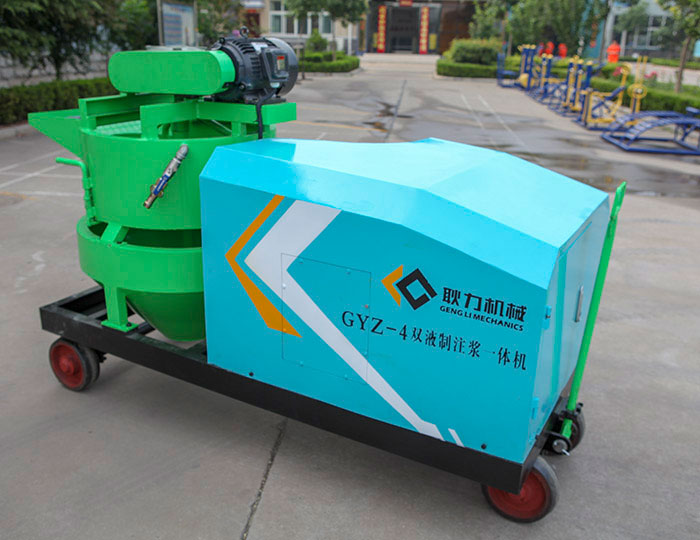

GYZ-4 Dual-fluid pulping and grouting machine

Theoretic output quantity：4m³ /h
Feeding height：1150mm
Mixing speed：48r/min
Mixing hopper volume：120L

Get a quote Send email

Description

The equipment is mixing and grouting machine, the mixing part adopts vertical double-layer mixing, the upper layer is a mixing bucket and the lower layer is a discharging bucket, Grouting part adopts fully hydraulic single-cylinder double-acting piston pump; The structure not only reduces equipment investment, but also improves grouting efficiency and reduces the labor intensity of workers at the working site.

Features

Integrating mixing, storing and grouting
It integrates mixing, storing and grouting for easier operation

The discharge hose is easy to disassemble and clean
The discharge hose is connected with a quick connector for easy disassembly and cleaning.

Grouting parts with easy disassembly and extremely low fault rate
Grouting parts with simple structure, easy disassembly and low fault rate.

Machine with flexible movement and strong applicability
Compact structure and outstanding mobility, especially suitable for narrow operation space.

Parameters

Model	GYZ-4
Production capacity	4m³/h
Maximum system pressure	7Mpa
Working pressure	0.5~7Mpa
Maximum delivery distance	Horizontal 200m/Vertical 60m
Mixing speed	48r/min
Feeding speed	1150mm
Inner diameter of grouting pipe	Φ38mm
Mixing hopper volume	120L
Hydraulic pump motor model	Y160M-4
Mixer motor model	Y112M-4
Total motor power	11+4+0.0+0.04(KW)
voltage	380V
Machine weight	450kg
Dimension	2220×920×1500mm
