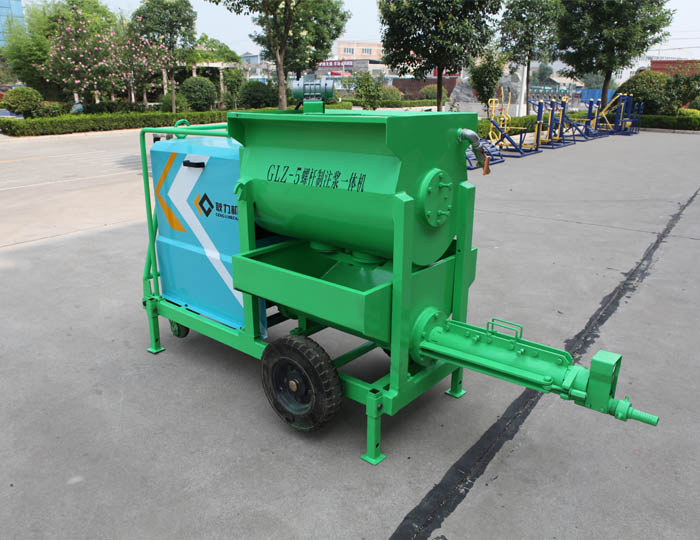

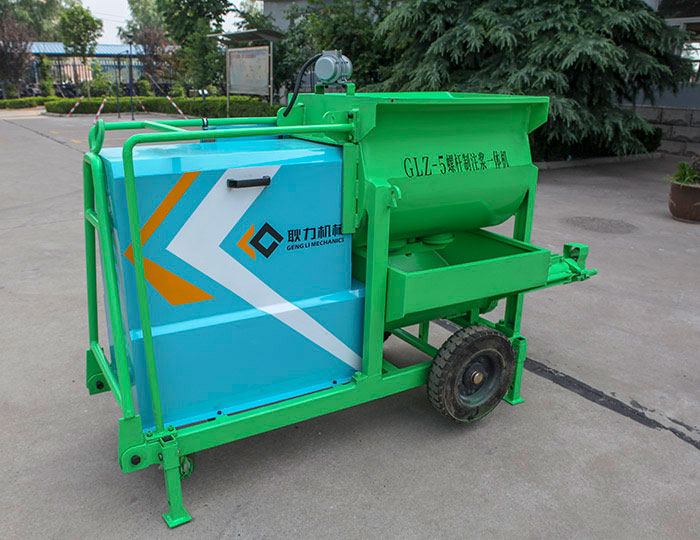

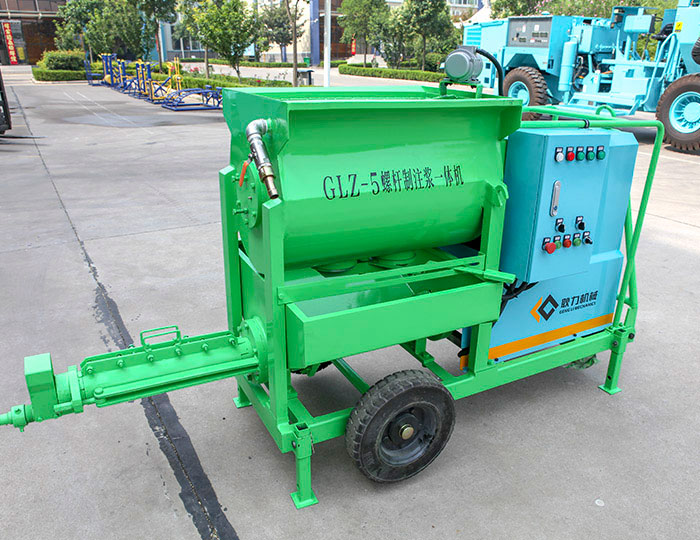

GLZ-5 Screw pulping and grouting machine

Description

The main function of GLZ-5 Screw pulping and grouting machine is to push the cement mortar to overcome the resistance of the pipeline to reach the pouring site. It is widely used in highways, railway tunnels, urban subways, hydropower stations, underground caves/chambers and other anchoring grouting projects.

Features

• Compact structure and reliable performance
• Compact structure, easy operation, reliable performance and imported electrical elements.

• The mixing and grouting can be realized at the same time
• Built-in mixing mechanism available manual or auto mixing, to realized mixing and grouting at the same time.

• Light weight and wheeled chassis, easy to move
• Light weight and wheeled chassis, easy to move.

• Applicable to a wide range of water-cement ratio
• Applicable to a wide range of water-cement ratio, especially suitable to high concentration mortar.

• Grouting sand with a wide range of particle size
• Applicable to high cement-sand ratio and wide range of sand particle diameter.

• Continuous grouting
• Continuous grouting, avoid high transient pulse pressure of piston pump.

• Passive pressure-rise to ensure grouting pressure
• Passive pressure rising; when the grout is full, the pressure rises gradually for easier control and maintaining of grouting pressure.

• Grouting is safe and reliable
• Once the grouting pressure has reached the designed value, it turns to release the pressure.

• As a single fluid pump, additives like accelerator is not allowed
• As a single fluid pump, additives like accelerator is not allowed.

Parameters

Project case
