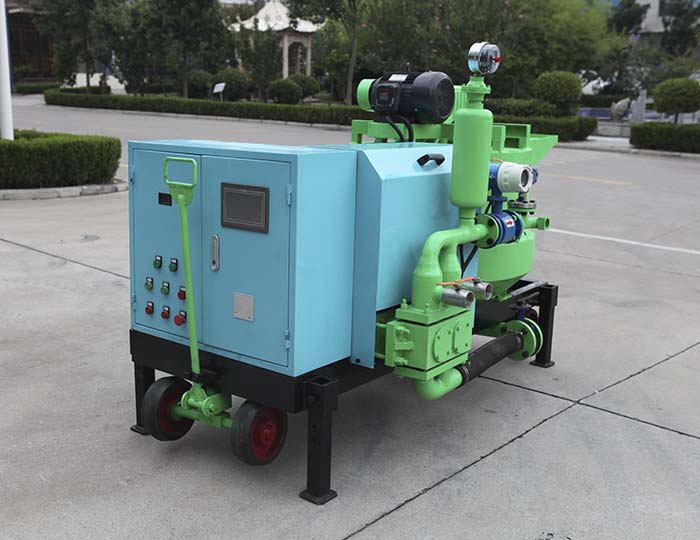

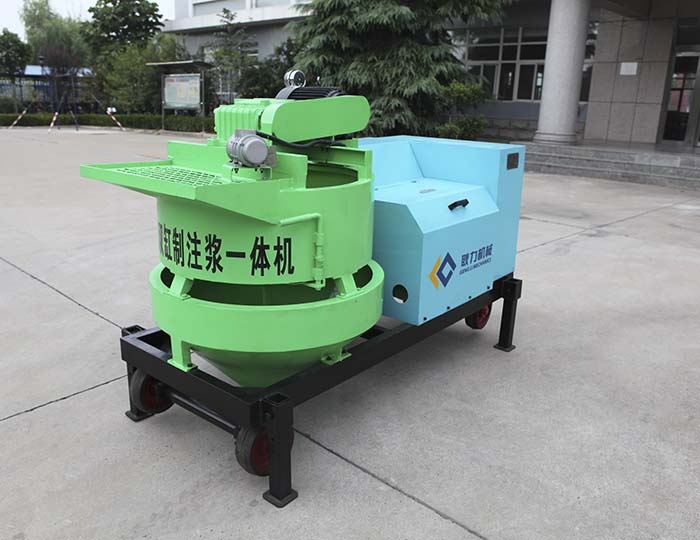

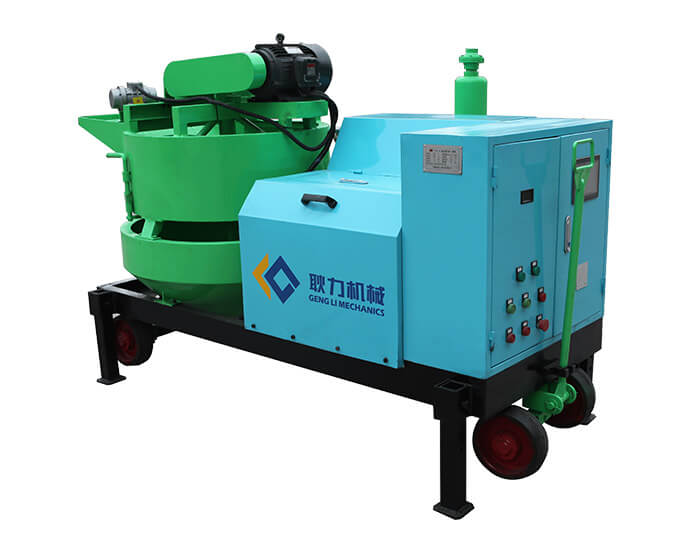

GSZ-8 Double-cylinder pulping and grouting machine

Theoretic output quantity：8m³ /h
Maximum delivery distance：Horizontal 200m/Vertical 60m
Plunger cylinder：2
Motor speed：1480r/min

Get a quote Send email

Description

GSZ-8 Double-cylinder pulping and grouting machine, also known as vault-type with mold grouting machine, it consists of pulping part and grouting part, the pulping part adopts vertical double-layer mixing, the upper layer is a mixing barrel and the lower layer is a storage barrel. The grouting part adopts double-piston grouting machine.

Features

High pumping pressure
High pumping pressure, suitable for the grouting of low water-cement and high-concentration mortar.

Grouting pipe is easy to disassemble, and convenient to clean and maintain
The grouting pipe is connected with a quick connector, making it easy to disassemble and clean.

Simplify construction technology, improve grouting quality
Upgraded technology to improve grouting quality and make tunnel construction easier.

Integrating mixing, storing and grouting
It integrates mixing, storing and grouting for easier operation

Parameters

Machine parameters	Model	GSZ-8
	Machine weight	1040kg
	Dimension	2160×1260×1550mm
	Production capacity	8m³/h
	Mixing system power	4KW
	Grouting system power	11KW
	Working pressure	0-5Mpa
	Maximum delivery distance	Horizontal 200m/Vertical 60m
	Feeding height	1150mm
Mixing system	Mixing speed	48r/min
Mixing system	Mixing hopper volume	180L
Pumping system	Plunger cylinder numbers	2
	Motor speed	1480r/min
	Diameter of slurry pipe	42mm
Electronic control system	Pressure factory setting	6Mpa
